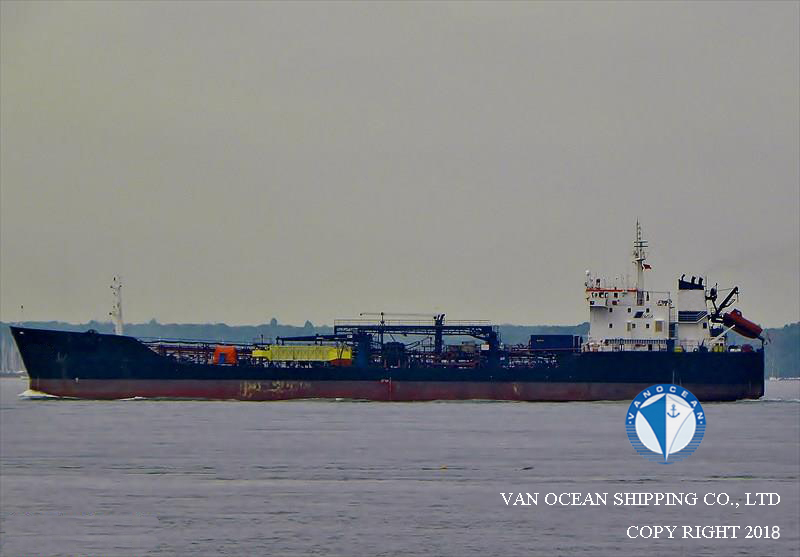

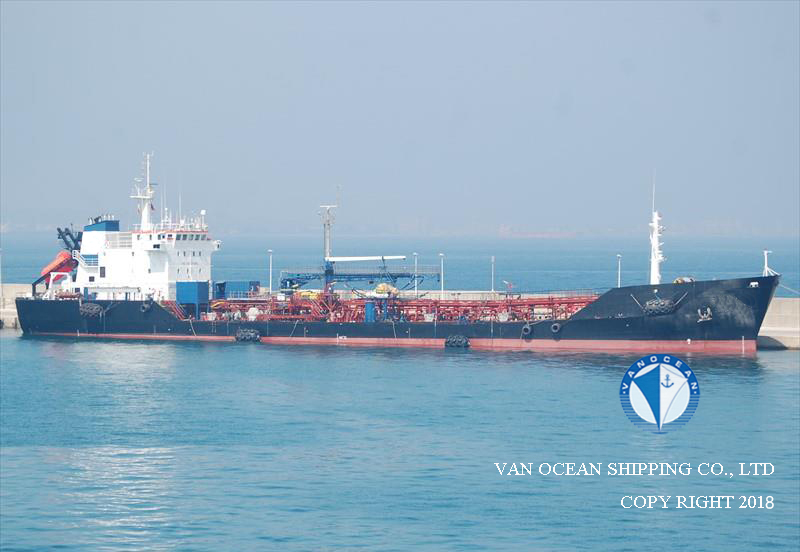

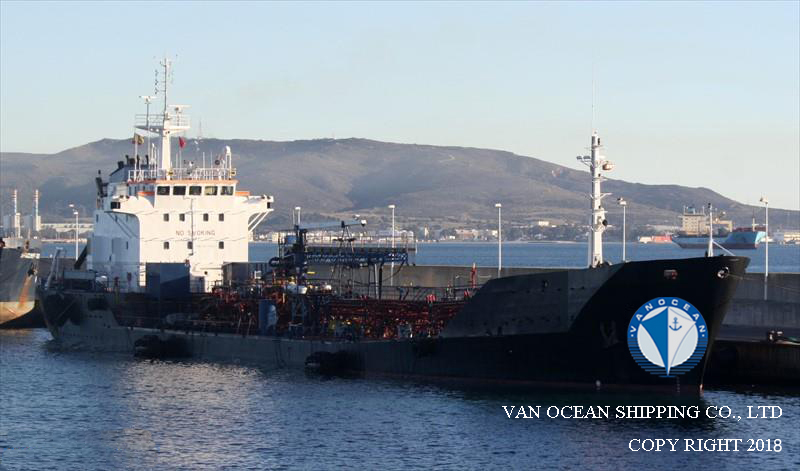

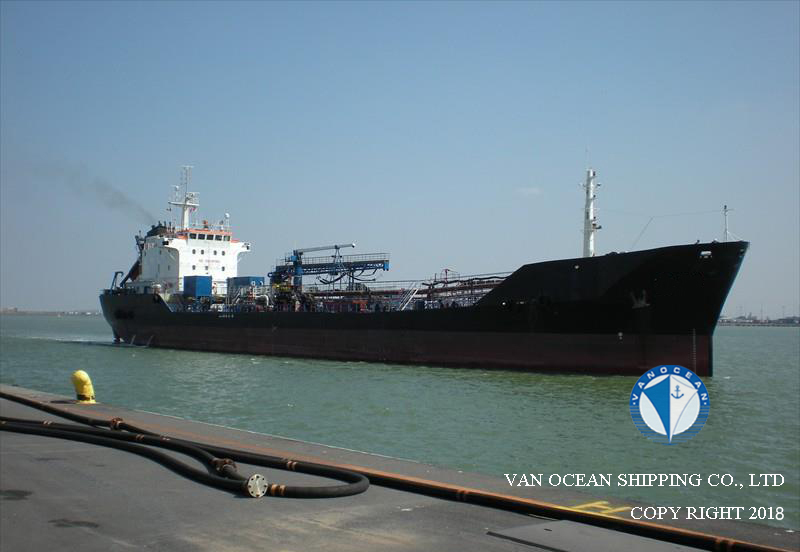

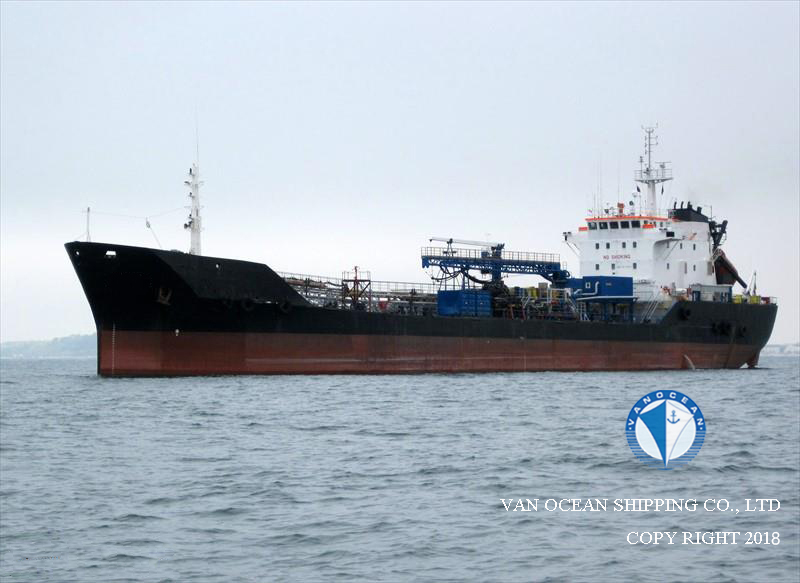

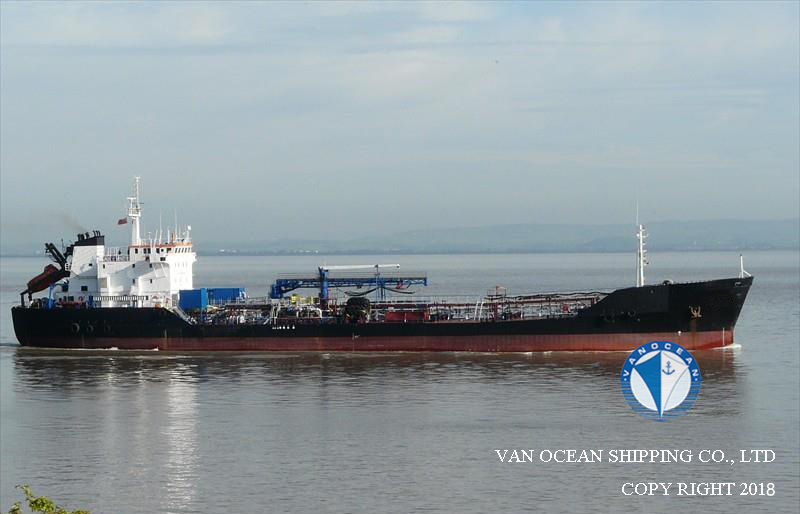

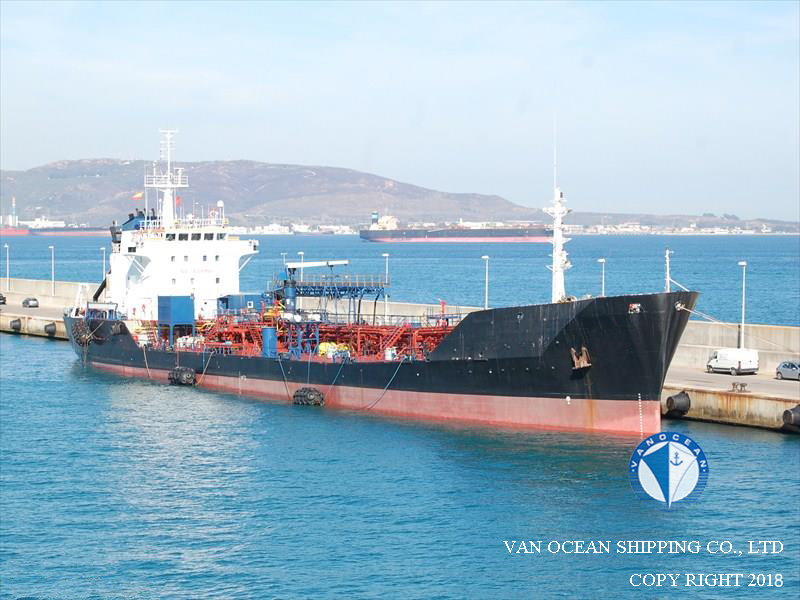

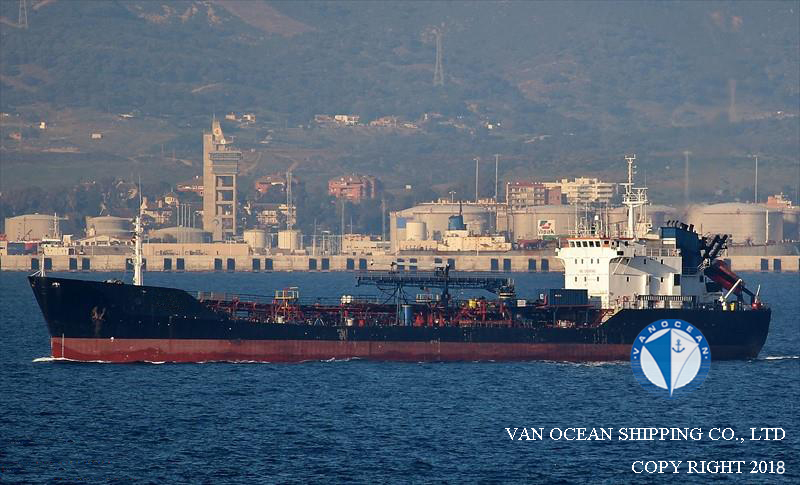

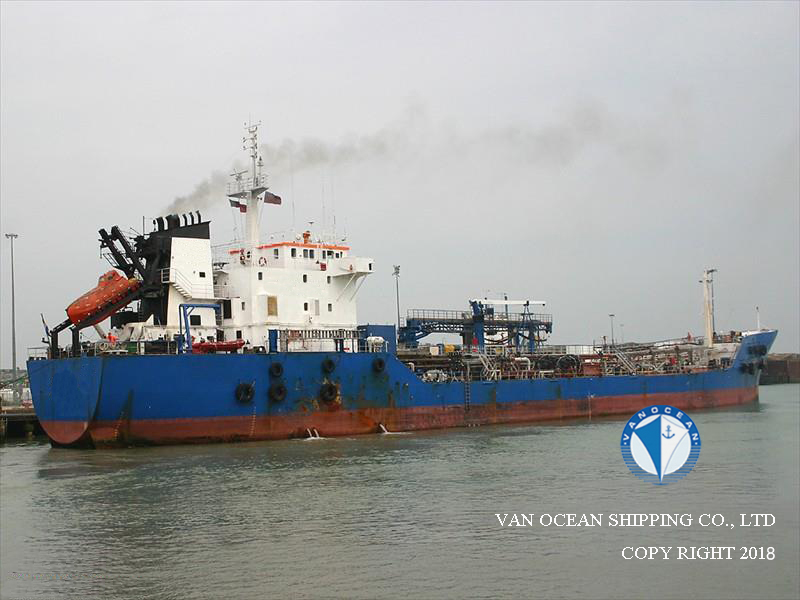

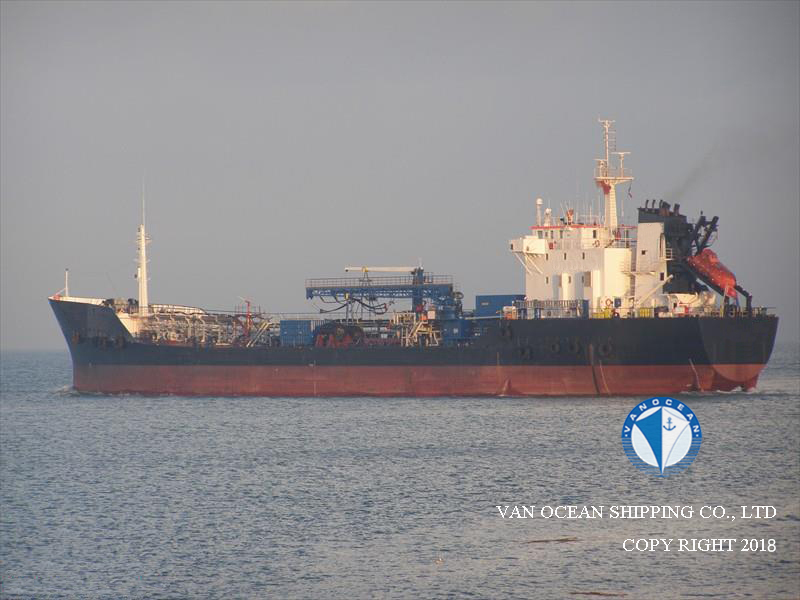

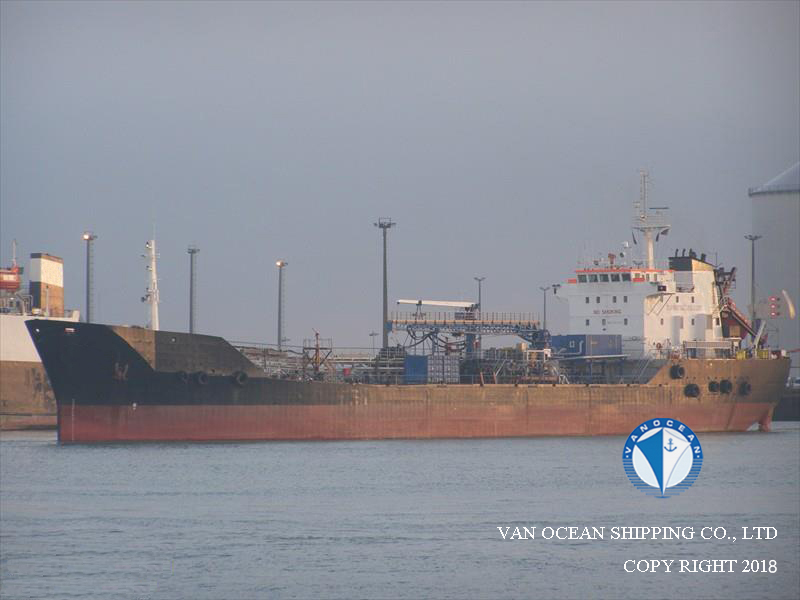

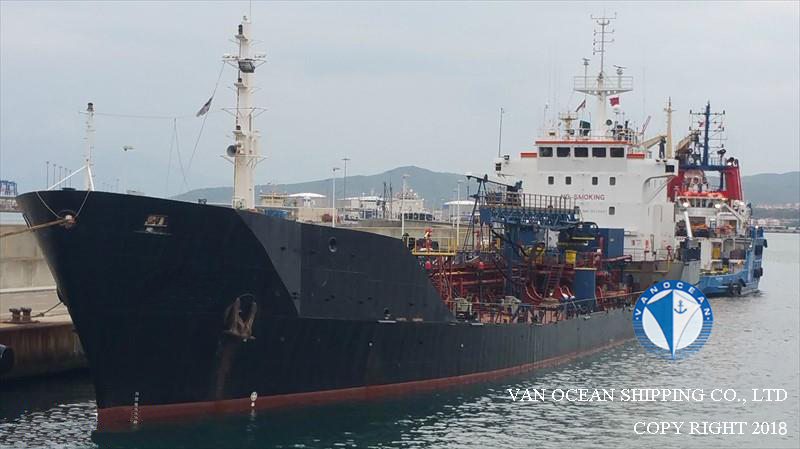

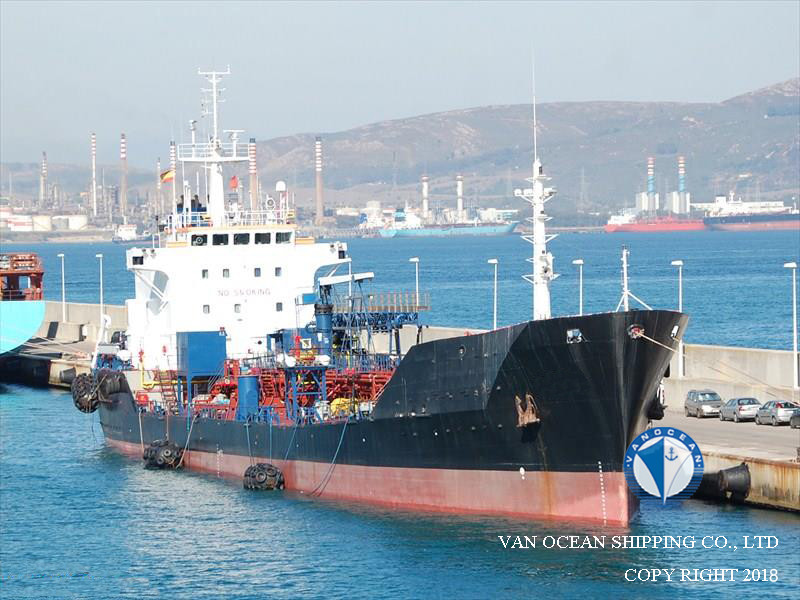

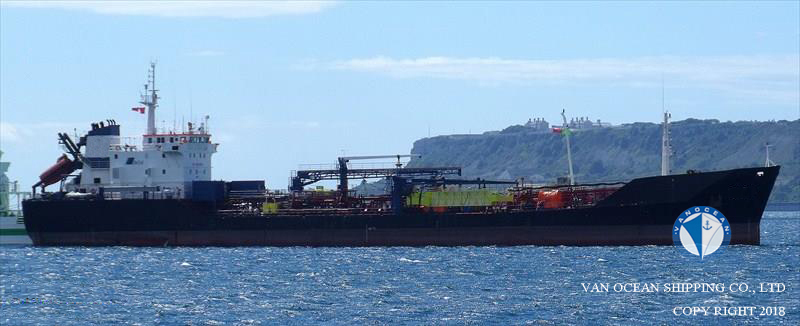

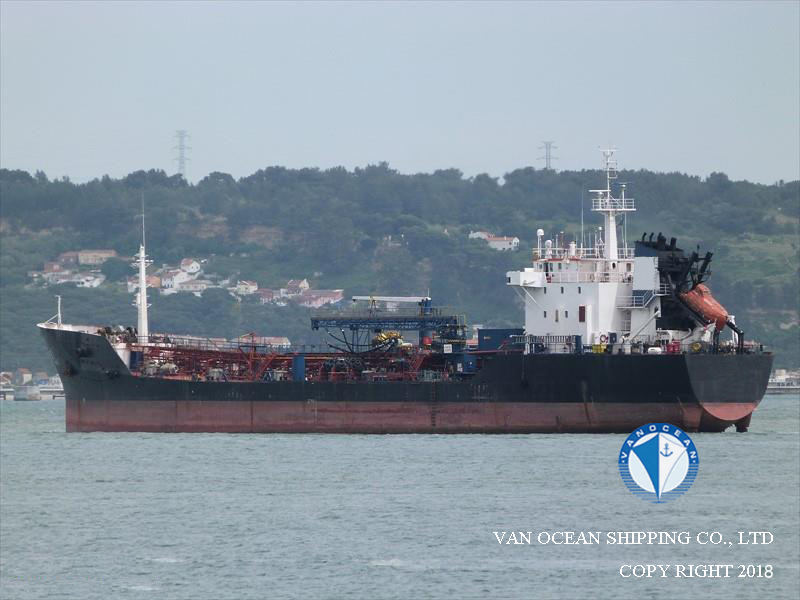

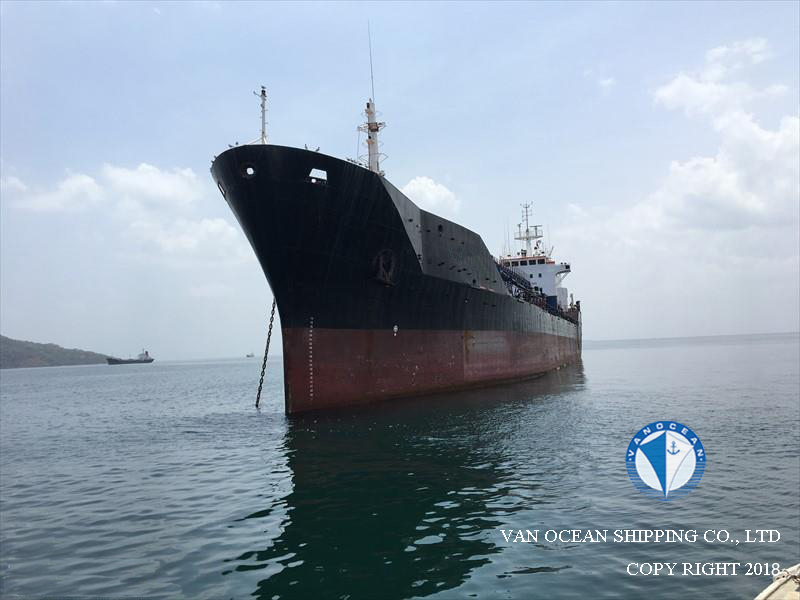

VESSEL NAME
TNK321
TYPE
OIL/CHEMICAL TANKER
HULL TYPE
DOUBLE HULL
FLAG
PANAMA
PORT OF REGISTRY
PANAMA
BUILT YEAR
1990
BUILT PLACE
CANTIERE NAVALE FERRARI, LA SPEZIA, ITALY
CLASSIFICATION
BV
CLASS NOTATION
I + HULL + MACH, Oil tanker ESP - FLASH POINT
>60C, UNRESTRICTED NAVIGATION, F, + AUT-UMS-
ERS-S
SS
2020-05-10
DD
2018-05-27
LOA (M)
111.30
LBP (M)
106.30
BEAM (M)
16.52
DEPTH (M)
8.70
SUMMER DRAFT (M)
7.00
WINTER DRAFT (M)
6.83
TROPICAL DRAFT (M)
7.13
GT (MT)
4156.00
PANAMA GT (MT)
-
SUEZ GT (MT)
4038.00
NT (MT)
1947.00
PANAMA NT (MT)
2415.00
SUEZ NT (MT)
2415.00
SUMMER DWT (MT)
7389.00
WINTER DWT (MT)
6360.00
TROPICAL DWT (MT)
6810.00
DISPLACEMENT (MT)
9599.00
LDT (MT)
-
GEAR(S)
CRANE, 1 x 0.99 MT
M/E(S)
2 SETS
M/E POWER (KW)
-
A/E(S)
-
GENERATOR(S)
-
SHAFT GENERATOR(S)
-
PROPELLER(S)
-
SPEED /CONSUMPTIONS
-
FUEL TYPE
MGO
BUNKER CAPACITY (CBM)
-
TANKS CAPACITY (CBM)
BW: 2561
COMPARTMENT(S)
-
NUMBER OF CARGO HOLDS
12
CARGO CAPACITY98% (CBFT)
184266
CARGO CAPACITY98% (CBM)
5220
COATING/MATERIAL OF HOLD(S)
EPOXY COATED
HEATING SYSTEM
-
SACRIFICIAL ANODE
-
IGS
-
PUMP(S)
13 x 100CBM/HR
2 x 100CBM/HR
ONE PUMP FOR SINGLE HOLD OR NOT
YES
SIDE THRUSTER(S)
BOW THRUSTER, 350BHP
INSURANCE
-
CREW
-
ACCOMMODATION
-
INSPECTION
-
DELIVERY
PANAMA
PRICE
USD 1.6 MILLION
REMARK(S)
2 x SLOP TANK, 216CBM (TOTAL)
