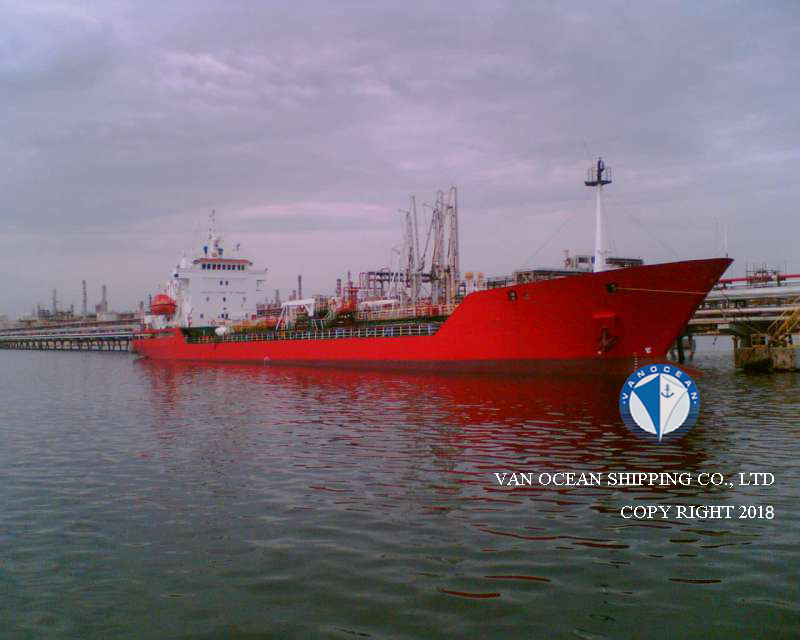

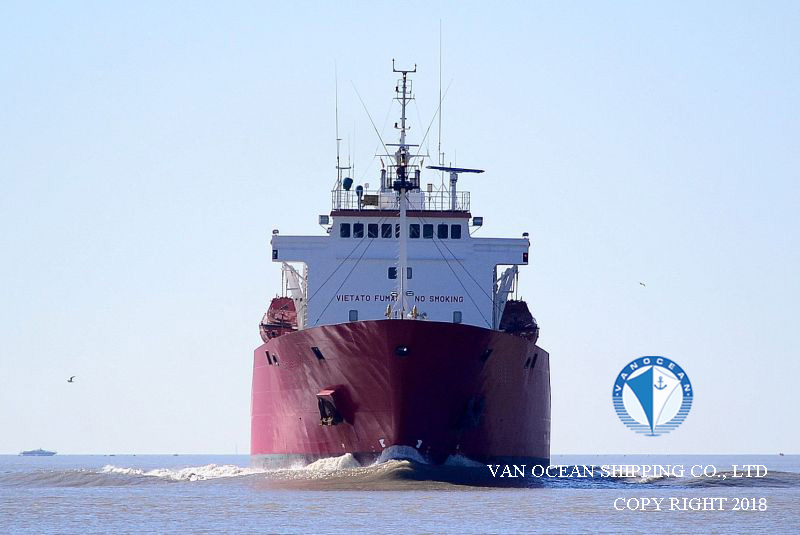

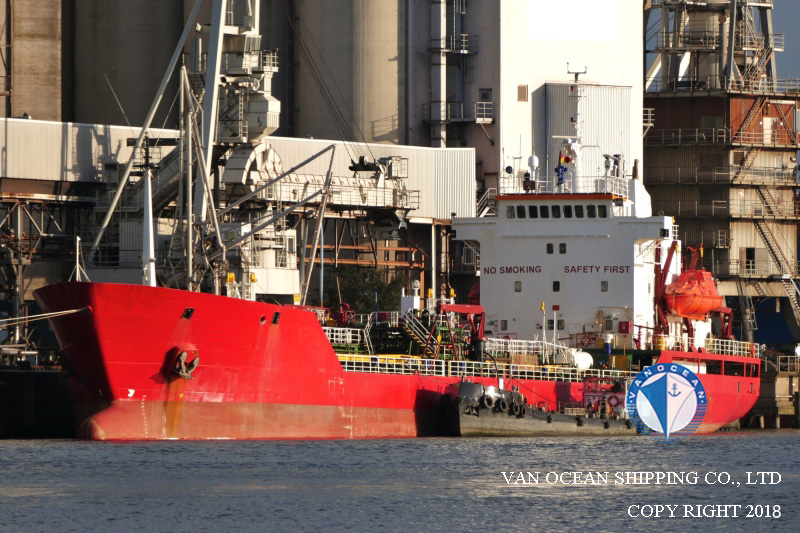

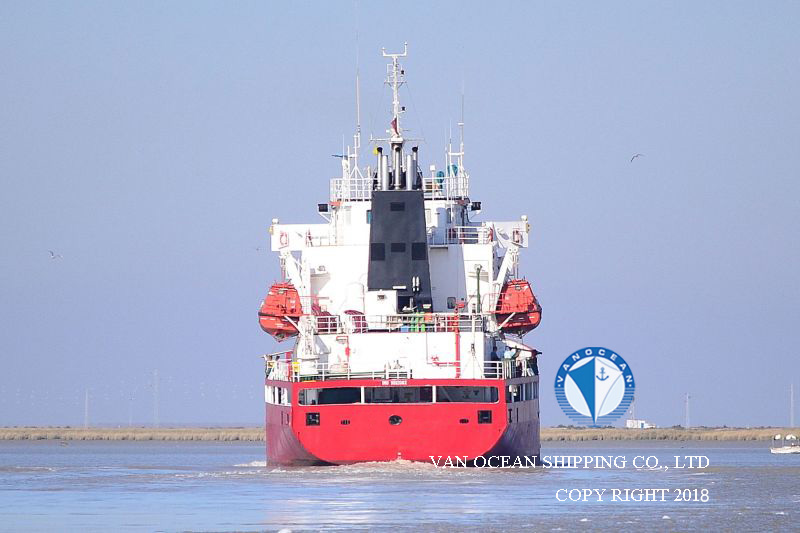

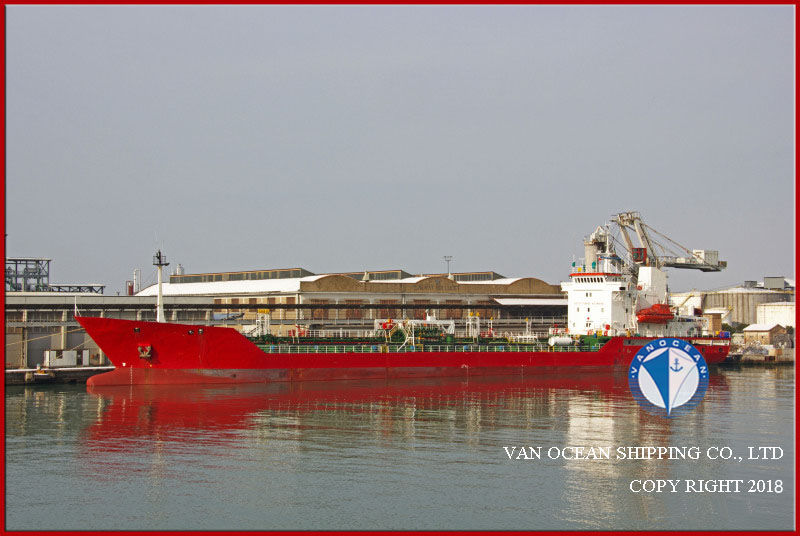

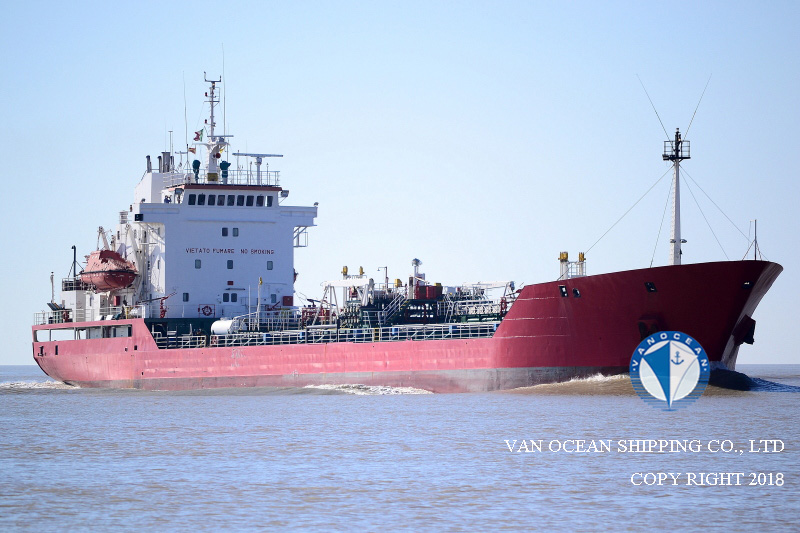

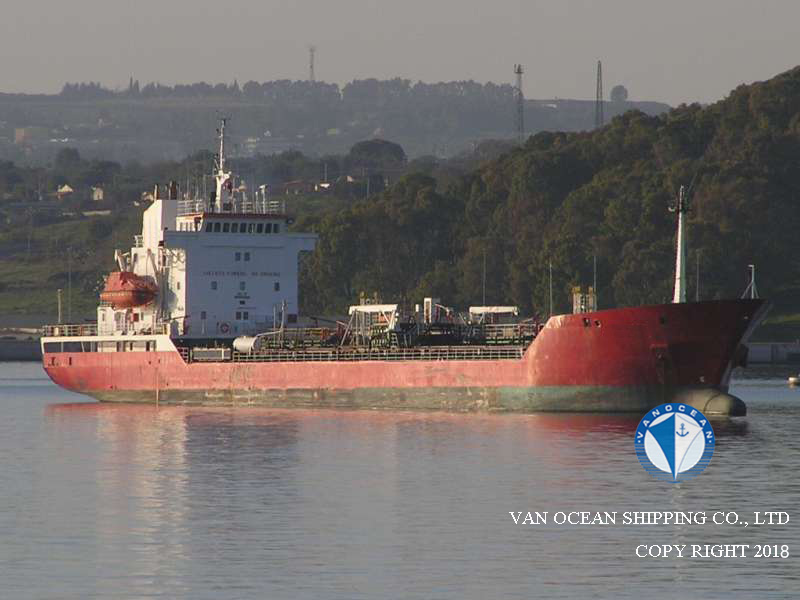

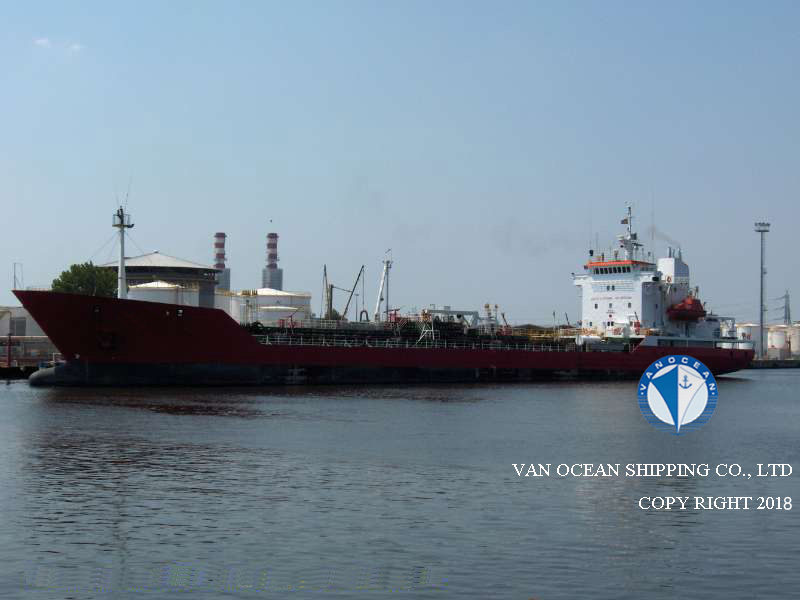

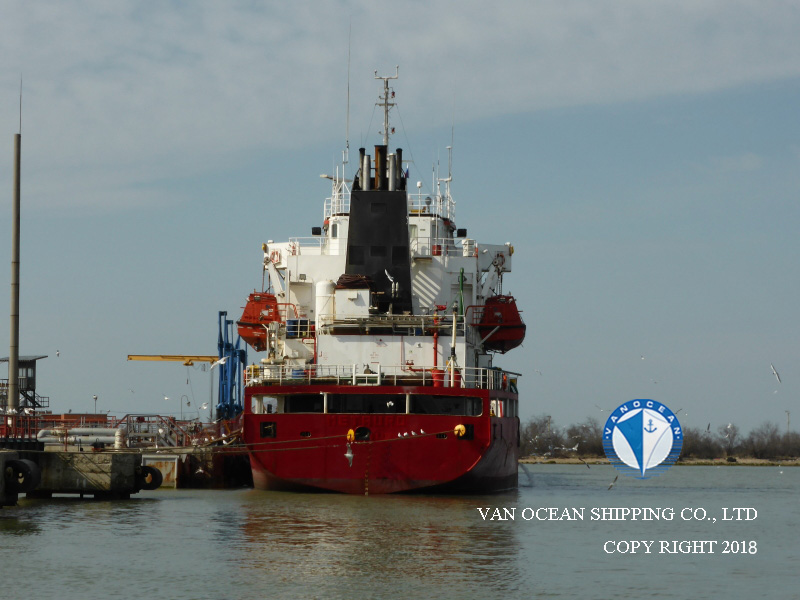

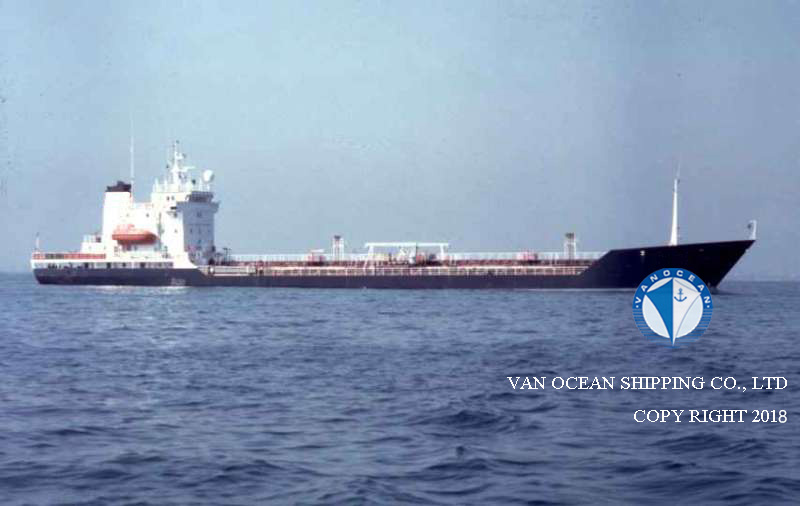

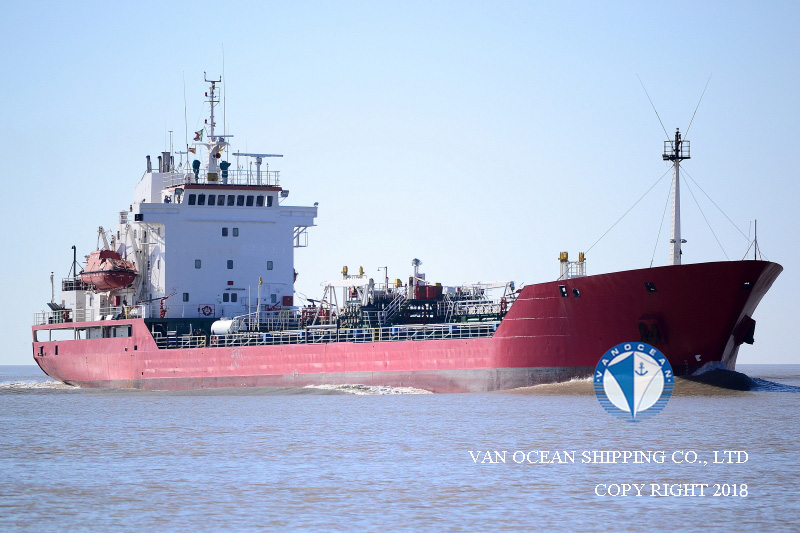

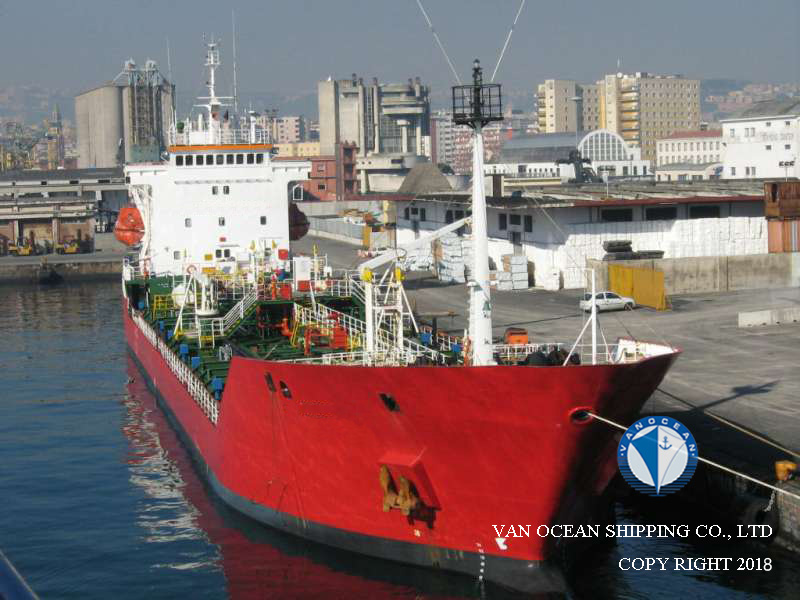

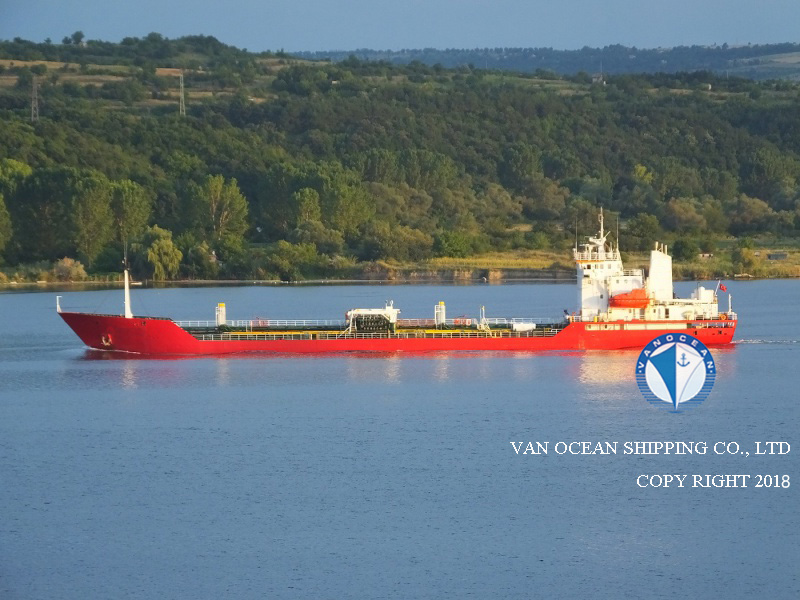

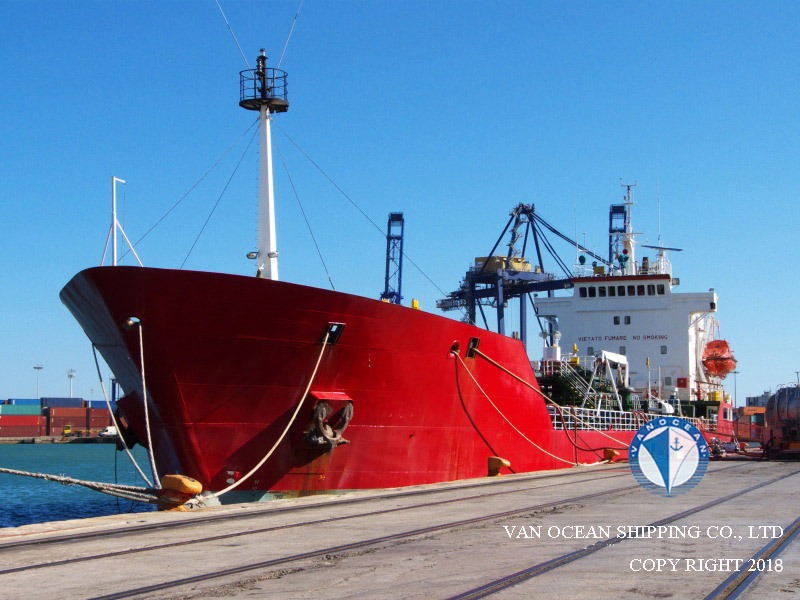

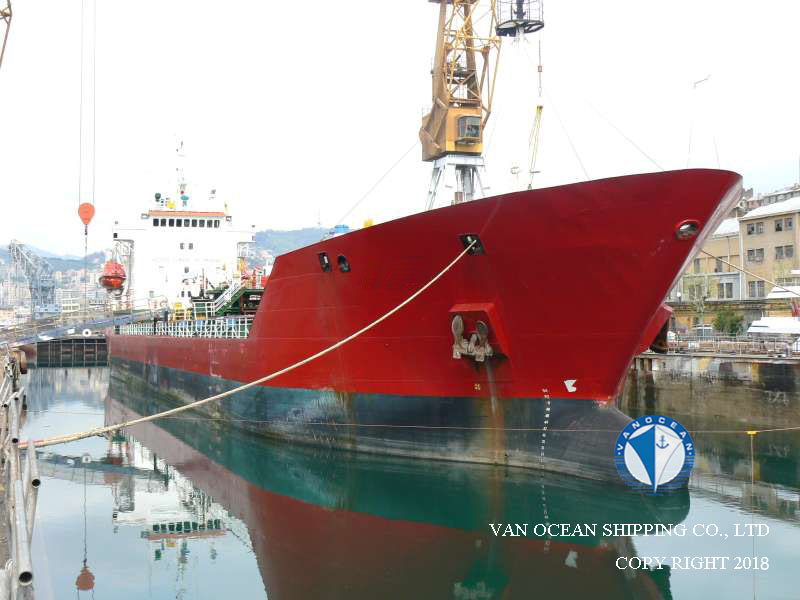

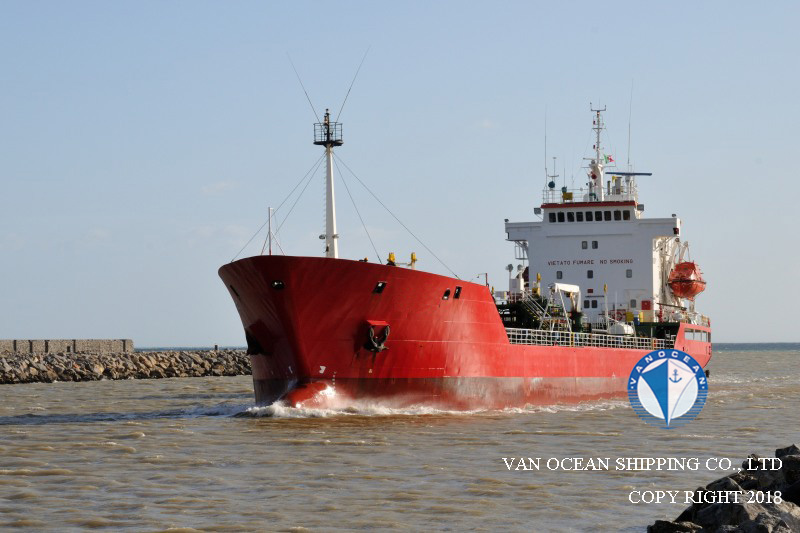

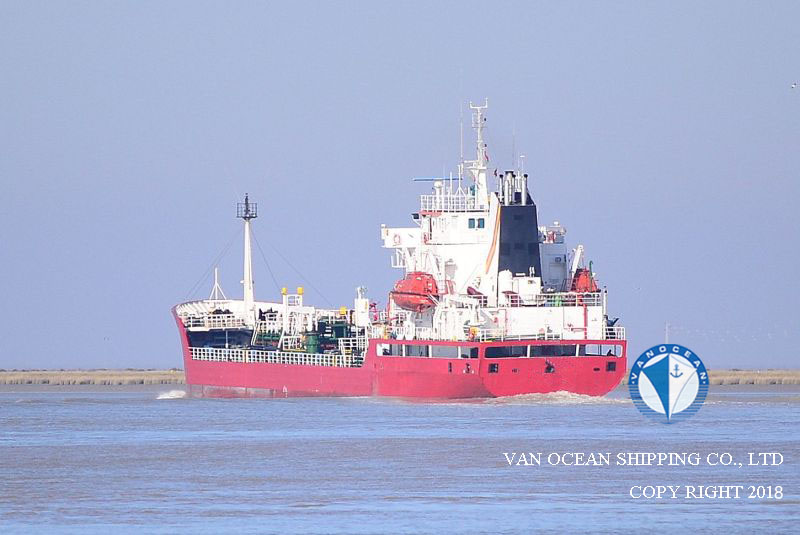

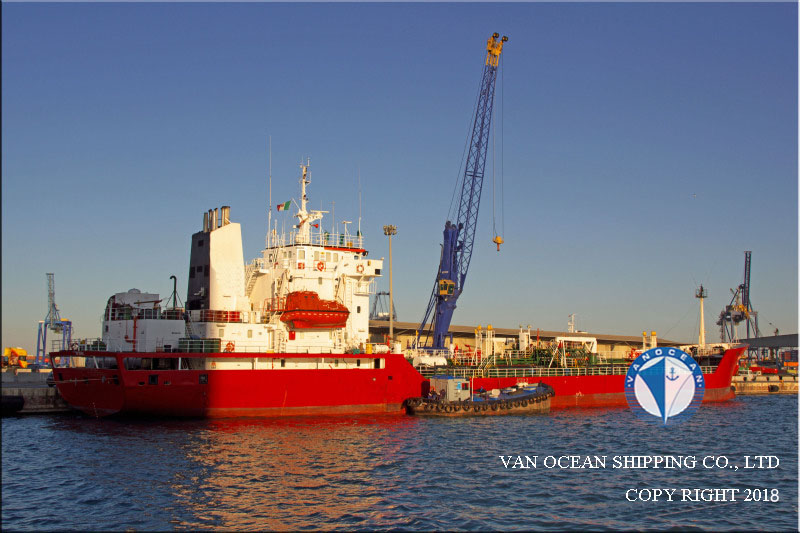

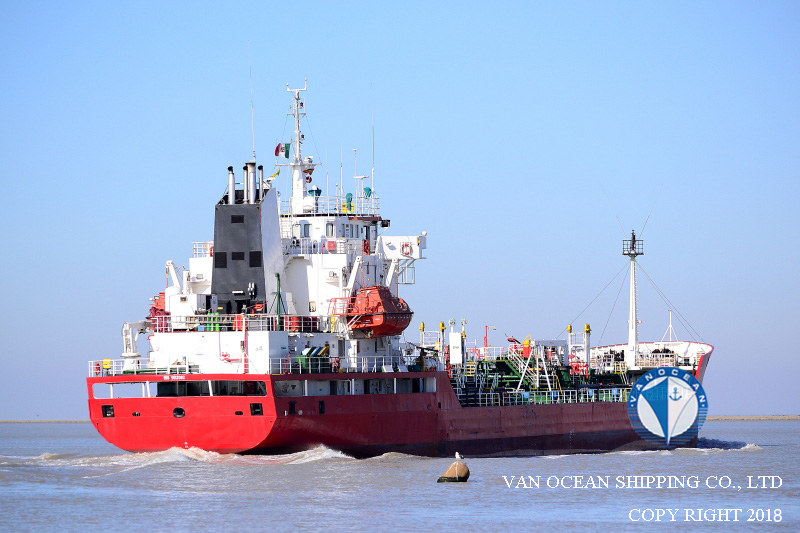

VESSEL NAME
TNK315
TYPE
OIL/CHEMICAL TANKER
HULL TYPE
DOUBLE HULL
FLAG
TURKEY
PORT OF REGISTRY
ISTANBUL
BUILT YEAR
1991
BUILT PLACE
CANTIERE MORINI, ITALY
CLASSIFICATION
BV / TURKISH LLOYD
CLASS NOTATION
OIL AND CHEMICAL IMO II - STAILESS STEEL - DH - R.I.NA. CLASS 100 A1 -
SS
2021-08
DD
2019-06
LOA (M)
108.70
LBP (M)
98.60
BEAM (M)
15.00
DEPTH (M)
7.02
SUMMER DRAFT (M)
5.18
WINTER DRAFT (M)
5.08
TROPICAL DRAFT (M)
5.30
GT (MT)
2987.00
PANAMA GT (MT)
-
SUEZ GT (MT)
-
NT (MT)
1264.00
PANAMA NT (MT)
-
SUEZ NT (MT)
-
SUMMER DWT (MT)
4621.00
WINTER DWT (MT)
4500.00
TROPICAL DWT (MT)
4810.00
DISPLACEMENT (MT)
6543.00
LDT (MT)
-
GEAR(S)
1 x 1.5 MT x 7 M
MIDSHIP CRANE 2 x 3 MT x 7M
M/E(S)
8R32D WARTSILA 4000HP @750RPM
M/E POWER (KW)
2944
A/E(S)
-
GENERATOR(S)
3 x 518KVA
1 x 167KVA
SHAFT GENERATOR(S)
1 x 500KVA
PROPELLER(S)
CPP
SPEED /CONSUMPTIONS
12KTS
FUEL TYPE
IFO180
BUNKER CAPACITY (CBM)
300.81.
TANKS CAPACITY (CBM)
MGO:205.37
SLOP TANK 299CBM IN TOTAL
FW:151.2
LUB:15.6
COMPARTMENT(S)
13
NUMBER OF CARGO HOLDS
10
CARGO CAPACITY98% (CBFT)
154190.4
CARGO CAPACITY98% (CBM)
4368
COATING/MATERIAL OF HOLD(S)
STAINLESS STEEL
HEATING SYSTEM
STAINLESS HEATING COILS
SACRIFICIAL ANODE
-
IGS
YES
PUMP(S)
CARGO PUMP:
10 x 150CBM/HR
3 x 70CBM/HR
BALLAST PUMP:
2 x 200CBM/HR
ONE PUMP FOR SINGLE HOLD OR NOT
YES
SIDE THRUSTER(S)
BOW THRUSTER: 1 x 400BHP
INSURANCE
-
CREW
-
ACCOMMODATION
-
INSPECTION
-
DELIVERY
-
PRICE
USD 1.7 MILLION
REMARK(S)
SBT: 2261CBM
2 SLOP TANK STST
REBUILT: IN 2007
CURRENTLY ENROUTE TO ALGERIA APPR ETA IS 20TH APRIL
