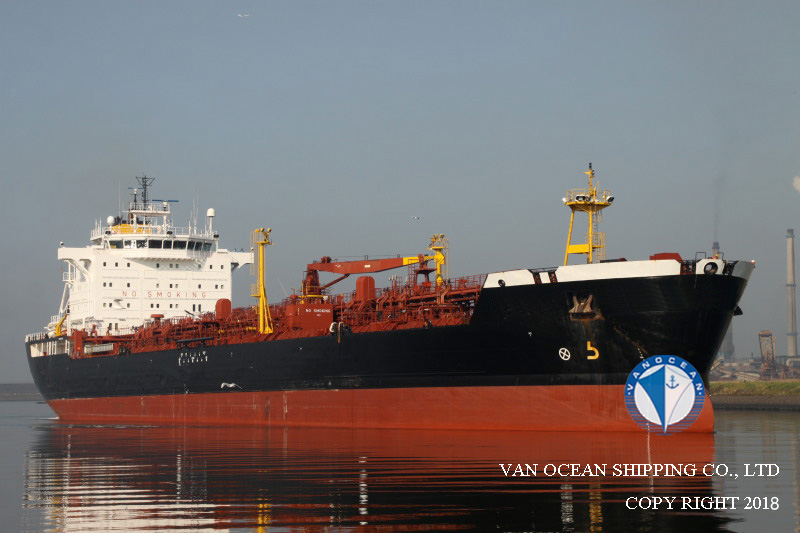

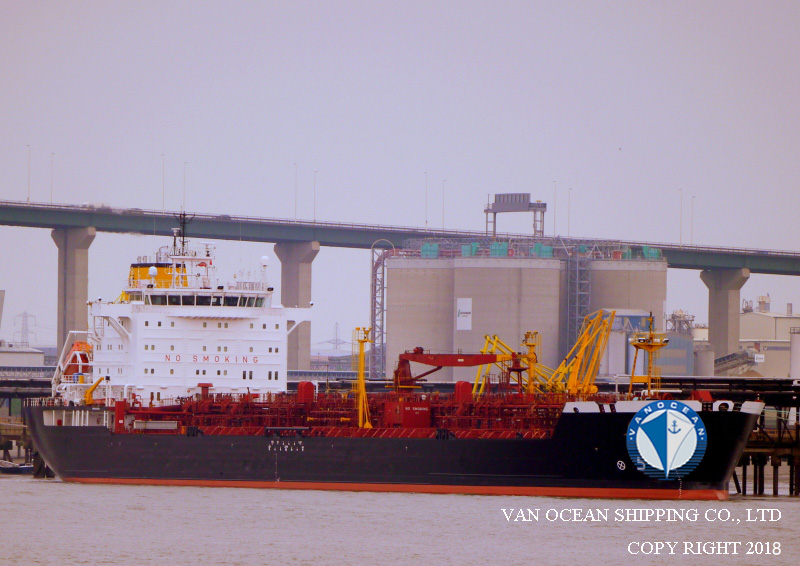

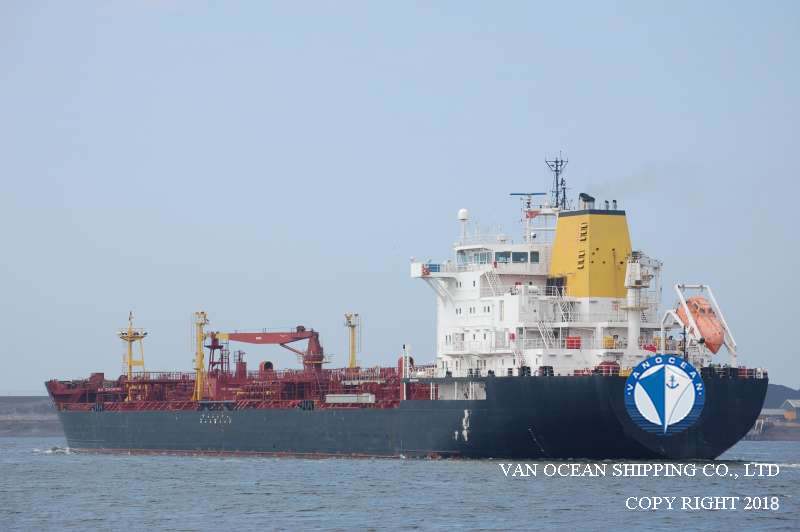

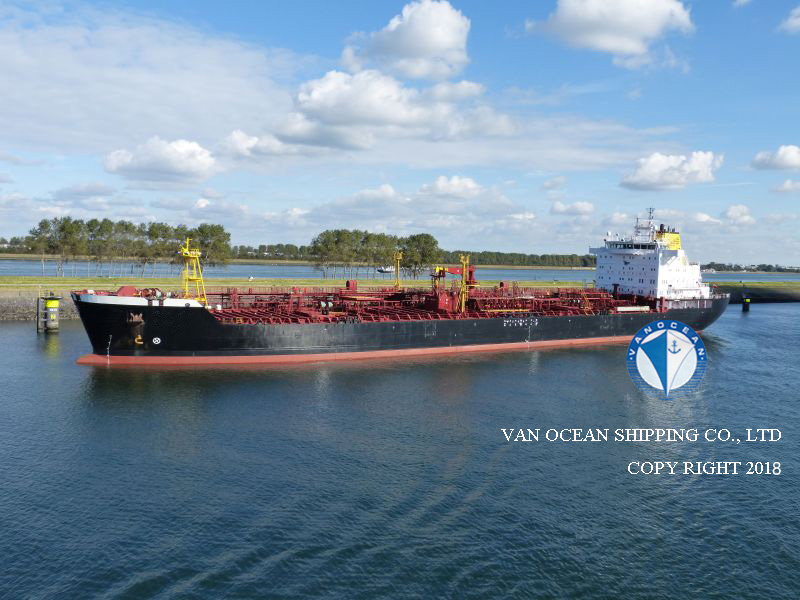

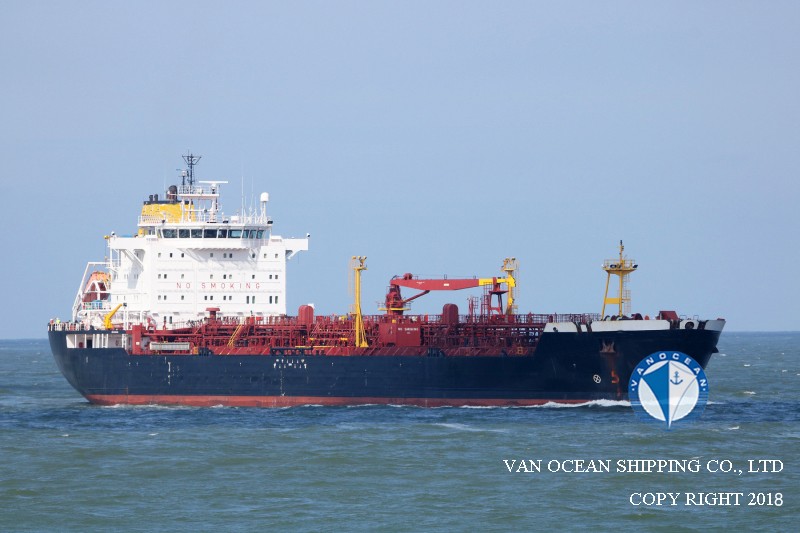

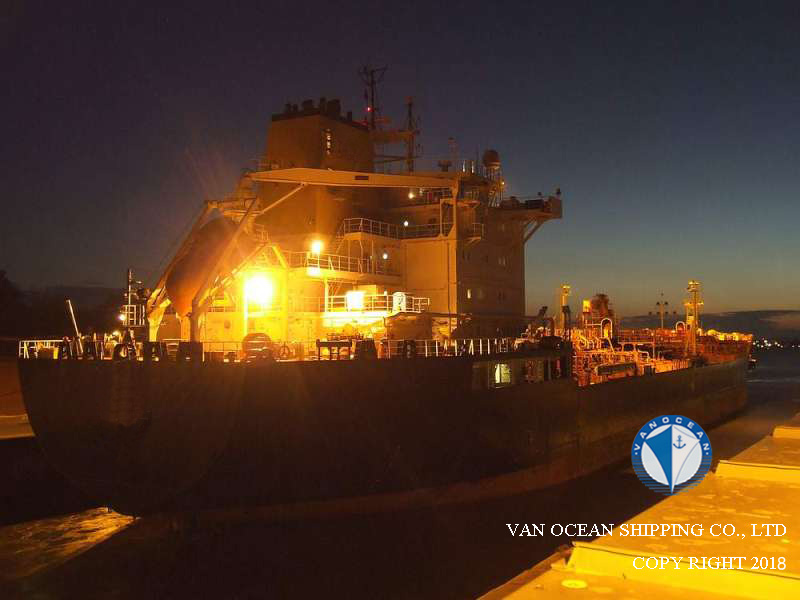

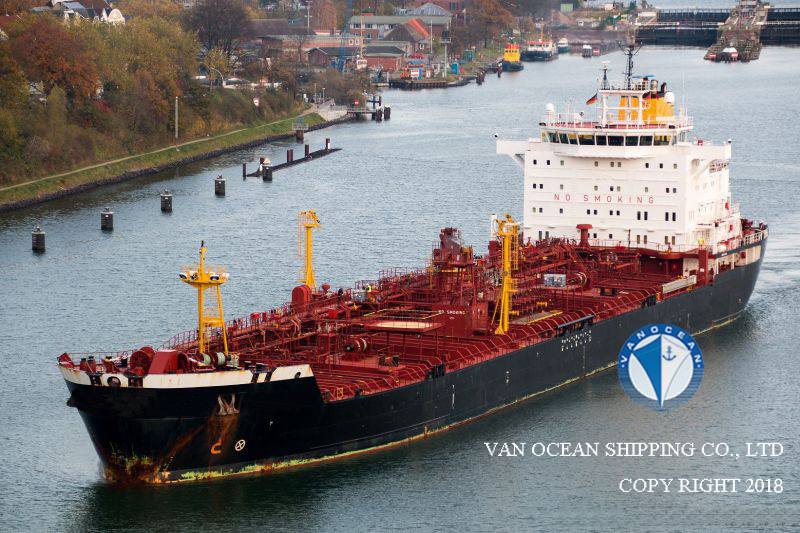

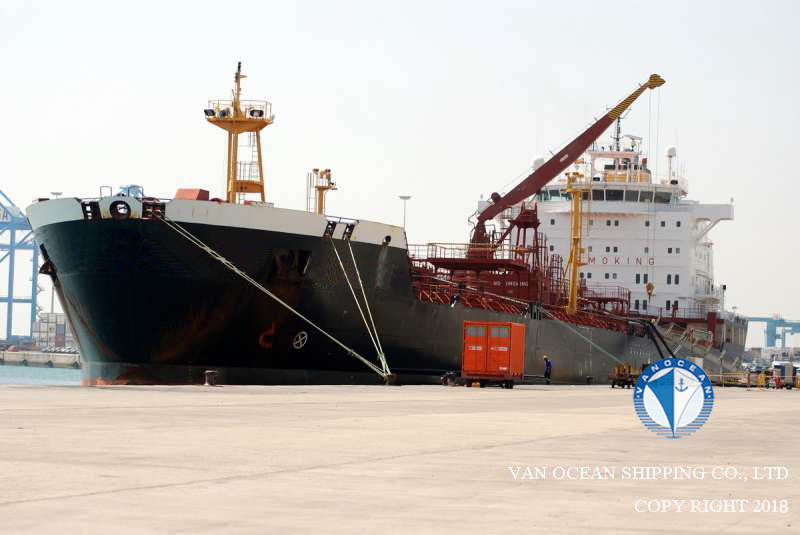

VESSEL NAME
TNK314
TYPE
OIL/CHEMICAL TANKER
HULL TYPE
DOUBLE HULL
FLAG
BRITISH
PORT OF REGISTRY
GIBRALTAR
BUILT YEAR
2003
BUILT PLACE
CROATIA
CLASSIFICATION
DNV GL
CLASS NOTATION
GL + 100A5 E2 ESP IW ERS T4D22 T3D21
CHEMICAL TANKER TYPE-2, OIL- TANKER
MC E 2 AUT INERT, RP1-16%
IMO2
ICE CLASS E2/1B
SS
2021-05
DD
2019-05
LOA (M)
167.67
LBP (M)
160.80
BEAM (M)
26.40
DEPTH (M)
13.80
SUMMER DRAFT (M)
9.19
WINTER DRAFT (M)
-
TROPICAL DRAFT (M)
-
GT (MT)
16914.00
PANAMA GT (MT)
-
SUEZ GT (MT)
16500.00
NT (MT)
6847.00
PANAMA NT (MT)
14153.00
SUEZ NT (MT)
11432.00
SUMMER DWT (MT)
24028.00
WINTER DWT (MT)
-
TROPICAL DWT (MT)
-
DISPLACEMENT (MT)
32068.00
LDT (MT)
-
GEAR(S)
CRANE: 1 x 10MT
M/E(S)
2 WARTSILA-NSD 6 RTA48T-B 10519BHP @ 127RPM LOW NOX EMISSION
M/E POWER (KW)
7850KW
A/E(S)
3 x WARTSILA 6L20C2，1020KW @900RPM
GENERATOR(S)
3 x 1 FC6-562-8VA83，1000KVA
EMERGENCY GENERATOR SET EQUIPPED
SHAFT GENERATOR(S)
PTO/PTI, 1500KVA, 1200KW @ 1200RPM
PROPELLER(S)
4 BLADES WARTSILA-LIPS CPP
SPEED /CONSUMPTIONS
15.5KTS
FUEL TYPE
HFO
BUNKER CAPACITY (CBM)
926
TANKS CAPACITY (CBM)
MDO: 130
SLOP：732
COMPARTMENT(S)
-
NUMBER OF CARGO HOLDS
14
CARGO CAPACITY98% (CBFT)
1040891
CARGO CAPACITY98% (CBM)
29487
COATING/MATERIAL OF HOLD(S)
EPOXY
HEATING SYSTEM
HEAT EXCHAGER
SACRIFICIAL ANODE
-
IGS
YES
PUMP(S)
CARGO PUMP:
14 x 350CBM/HR
SLOP / RESIDUAL PUMP:
3 x 100CBM/HR
PORTABLE CARGO PUMP:
1 x 150CBM/HR
BALLAST PUMP:
2 x 500CBM/HR
TANK CLEANING PUMP:
1 x 100CBM/HR
ONE PUMP FOR SINGLE HOLD OR NOT
YES
SIDE THRUSTER(S)
BOW THRUSTER: 800KW @ 1785RPM
INSURANCE
-
CREW
-
ACCOMMODATION
-
INSPECTION
P&I: USD 1 BILLION
HULL & MACH: 21 MILLION
DELIVERY
-
PRICE
-
REMARK(S)
SBT
