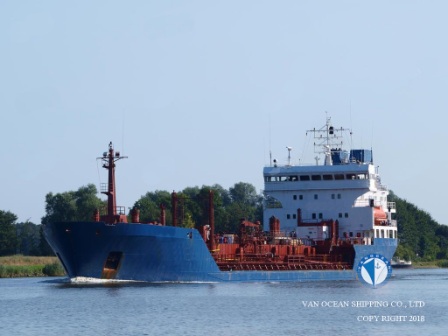

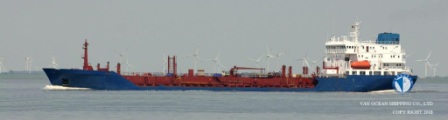

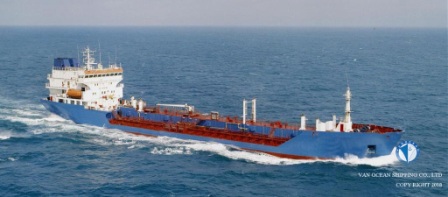

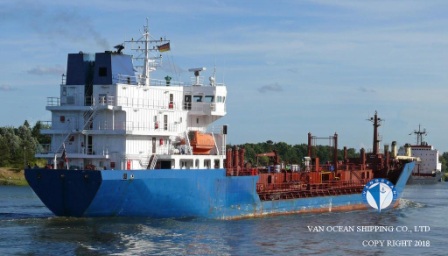

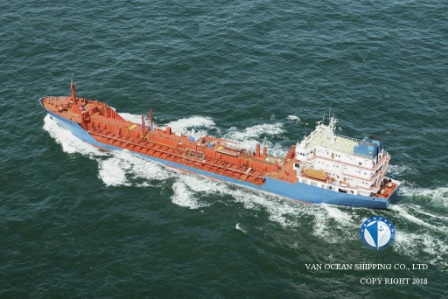

VESSEL NAME
TNK313
TYPE
OIL/CHEMICAL TANKER
HULL TYPE
DOUBLE HULL
FLAG
VANUATU
PORT OF REGISTRY
PORT VILA
BUILT YEAR
1980
BUILT PLACE
KALMAR VARV AB SWEDEN
CLASSIFICATION
DNV GL
CLASS NOTATION
1A1 TANKER FOR CHEMICALS ESP ICE-1A E0 HL(1.9)
SS
2018-09
DD
2018-09
LOA (M)
118.40
LBP (M)
109.47
BEAM (M)
15.50
DEPTH (M)
7.60
SUMMER DRAFT (M)
6.25
WINTER DRAFT (M)
6.12
TROPICAL DRAFT (M)
6.38
GT (MT)
4382.00
PANAMA GT (MT)
-
SUEZ GT (MT)
-
NT (MT)
1621.00
PANAMA NT (MT)
-
SUEZ NT (MT)
-
SUMMER DWT (MT)
5858.00
WINTER DWT (MT)
5660.00
TROPICAL DWT (MT)
6057.00
DISPLACEMENT (MT)
8440.00
LDT (MT)
-

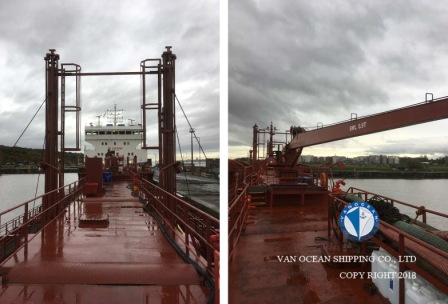

GEAR(S)
1 x 3.5MT CENTER

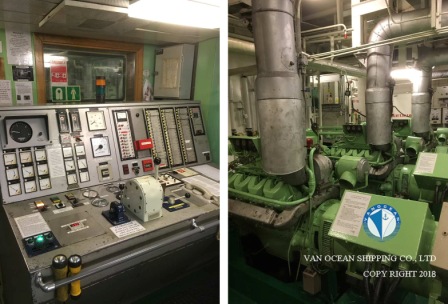

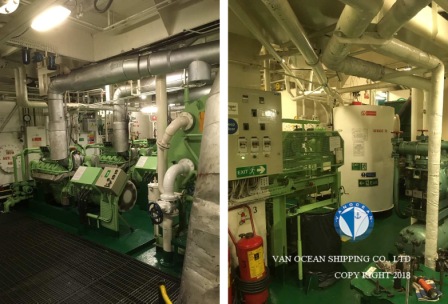

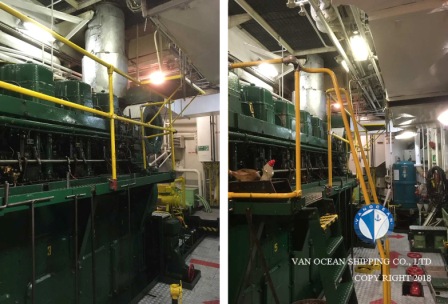

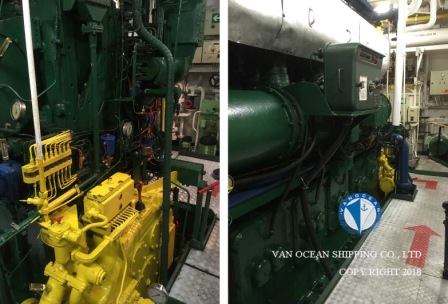

M/E(S)
MAK MASCHINENBAU GMBH
M/E POWER (KW)
2940

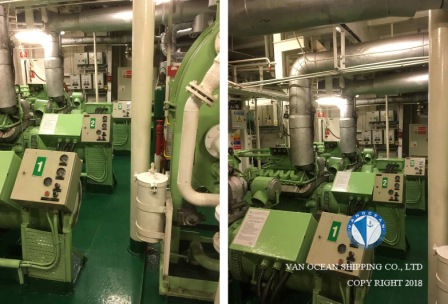

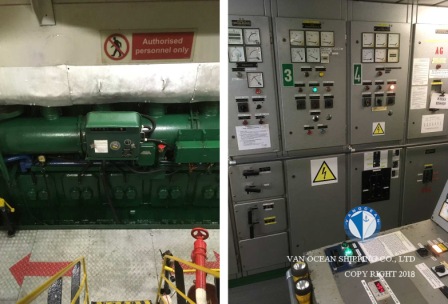

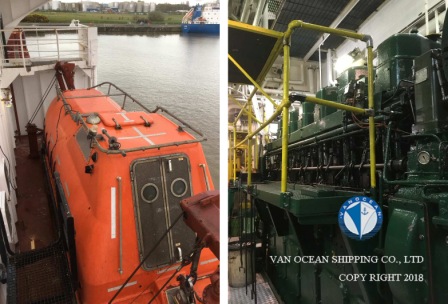

A/E(S)
4 SET
GENERATOR(S)
-
SHAFT GENERATOR(S)
-
PROPELLER(S)
-
SPEED /CONSUMPTIONS
13KTS ON ABT 13MT IFO180
FUEL TYPE
IFO180
BUNKER CAPACITY (CBM)
DO: 298
GO: 50
TANKS CAPACITY (CBM)
SLOP TANK: 155.24
COMPARTMENT(S)
-
NUMBER OF CARGO HOLDS
10
CARGO CAPACITY98% (CBFT)
197150.5
CARGO CAPACITY98% (CBM)
5585
COATING/MATERIAL OF HOLD(S)
CARGO TANKS: STAINLESS STEEL
BALLAST TANKS ARE EPOXY COATED (WHO;LE TANK)
HEATING SYSTEM
CARGO TANK: STAINLESS HEATING EXCHANGERS
SLOP TANK: STAINLESS HEATING COILS
SACRIFICIAL ANODE
-
IGS
-

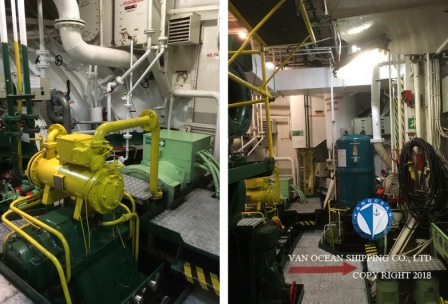

PUMP(S)
CARGO PUMP:
CENTRIFUGAL: 11 x 150CBM/HR
SCREW:1 x 120CBM/HR
CENTRIFUGAL: 1 x 70CBM/HR
BALLAST PUMP:
CENTRIFUGAL: 2 x 200CBM/HR
BALLAST EDUCTOR:
1 x 93CBM/HR
ONE PUMP FOR SINGLE HOLD OR NOT
YES
SIDE THRUSTER(S)
BOW THRUSTER 400BHP 294KW
INSURANCE
-
CREW
-

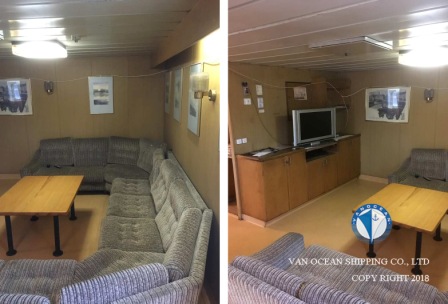

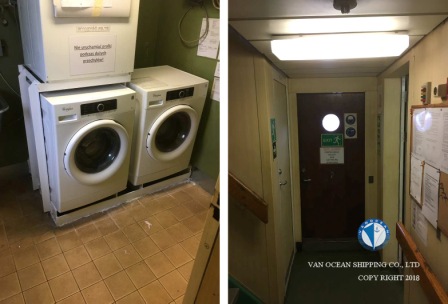

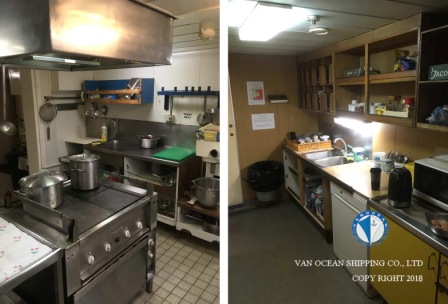

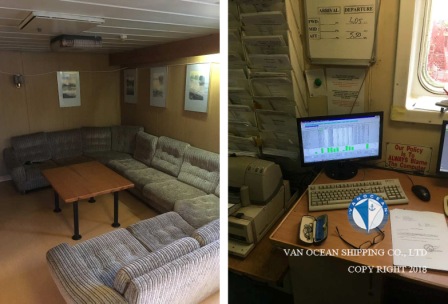

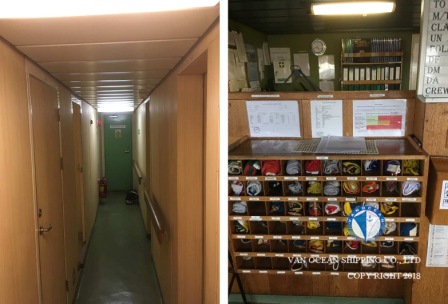

ACCOMMODATION
-
INSPECTION
-
DELIVERY
NORTH EUROPE AS WHERE SHE IS
PRICE
USD 2 MILLION
REMARK(S)
SBT: 920 CBM
