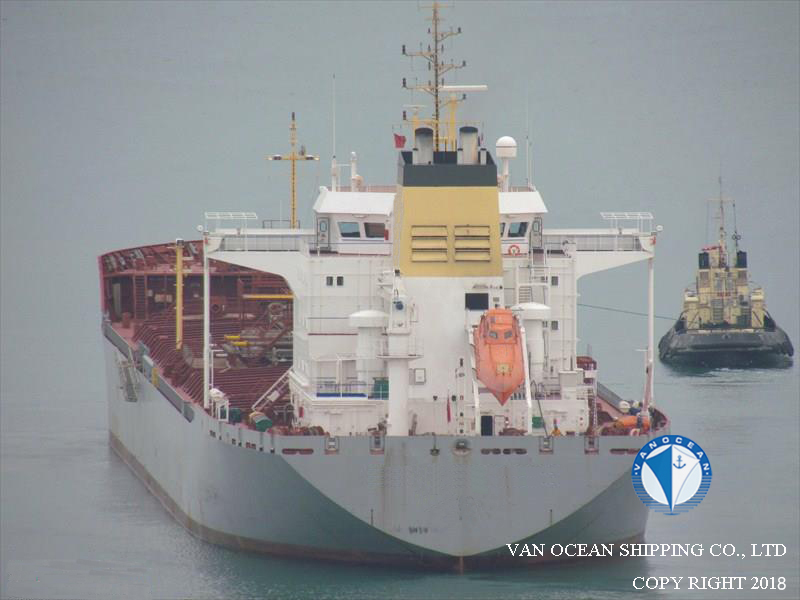

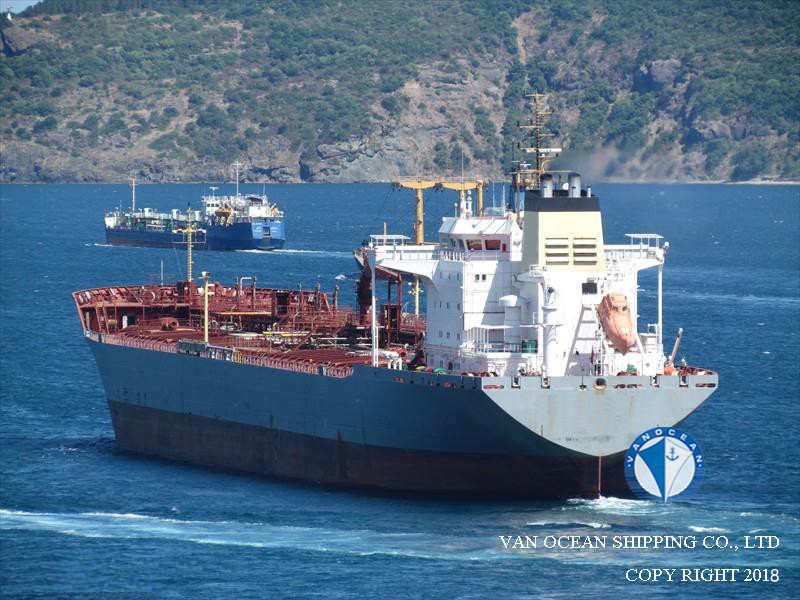

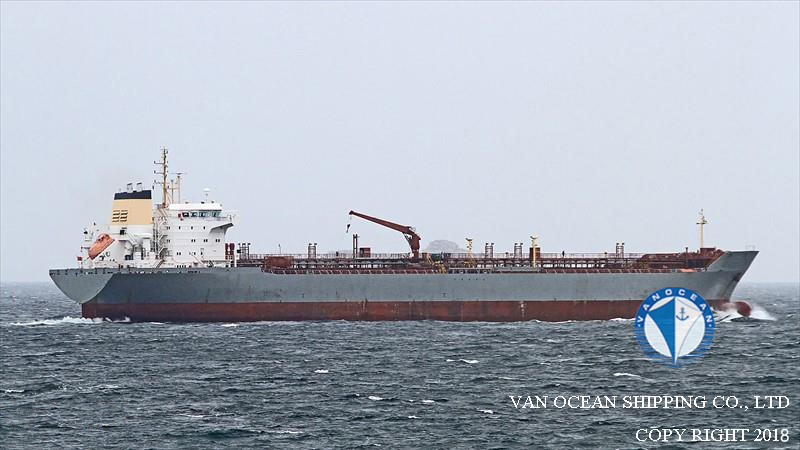

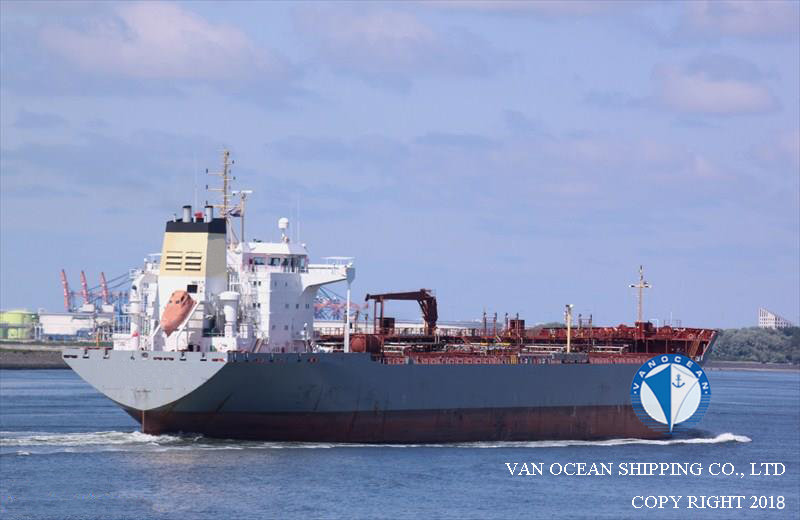

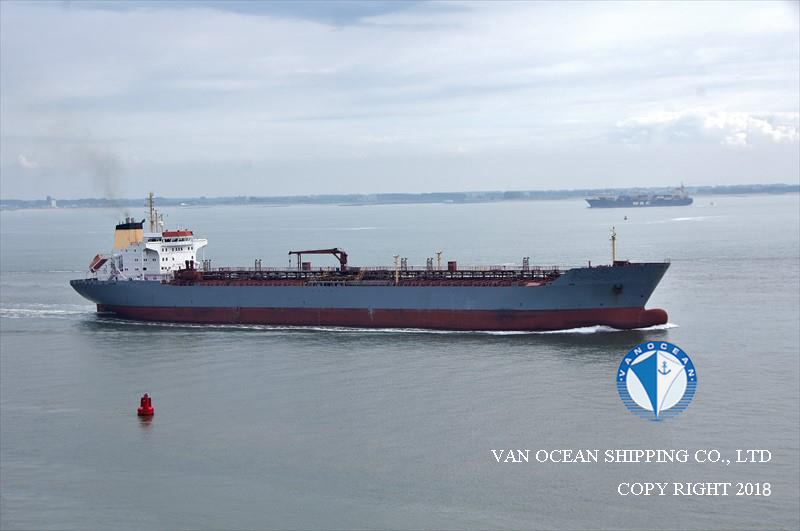

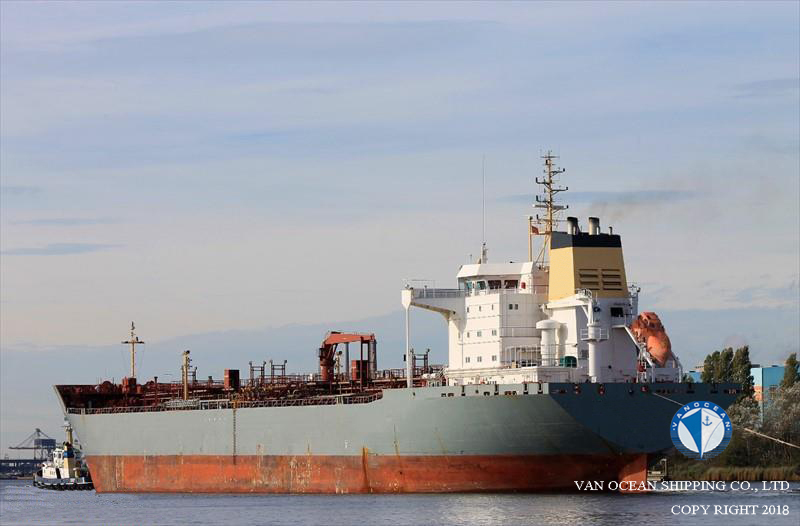

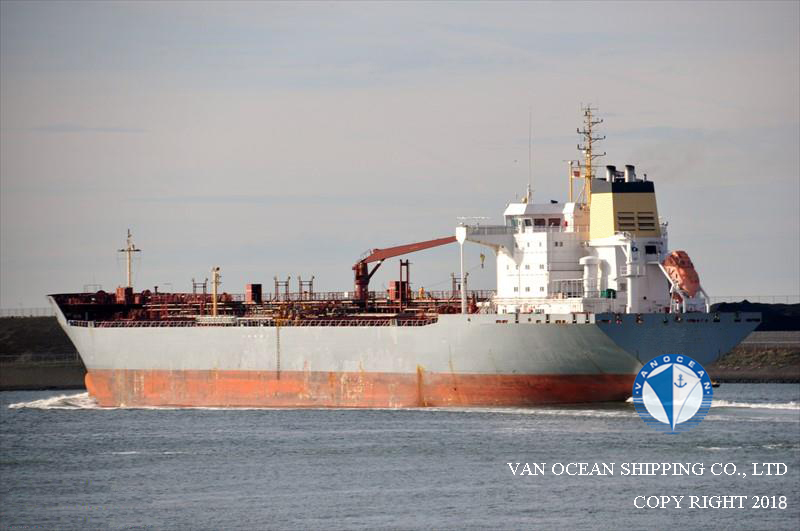

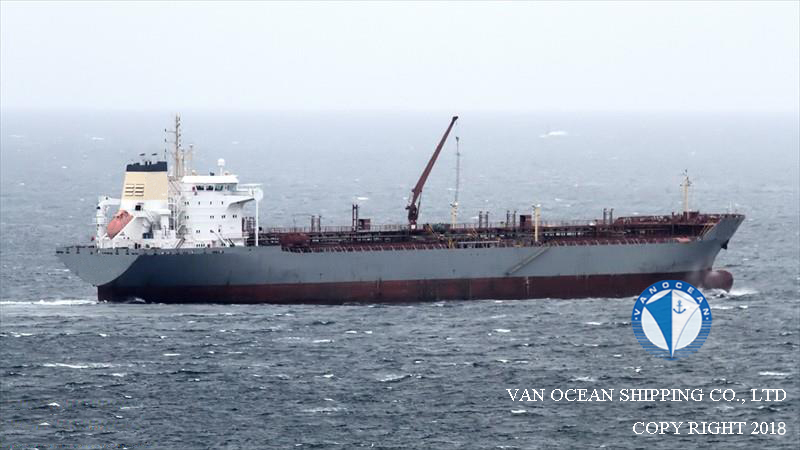

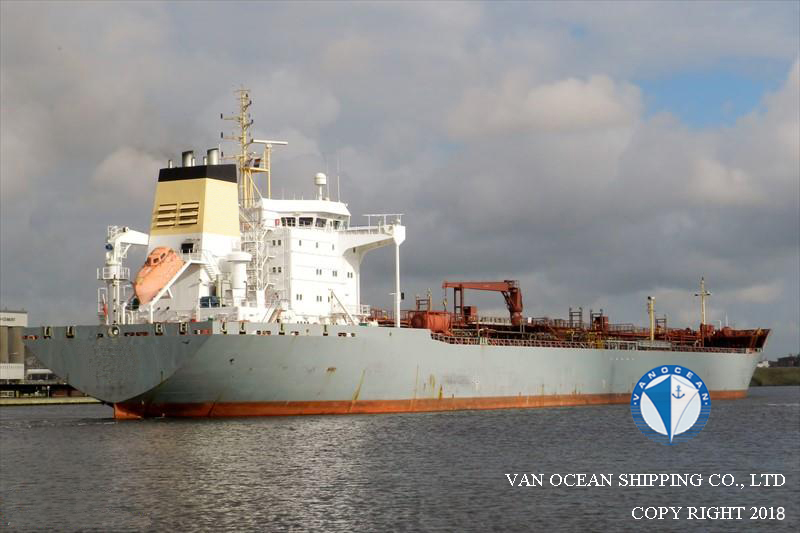

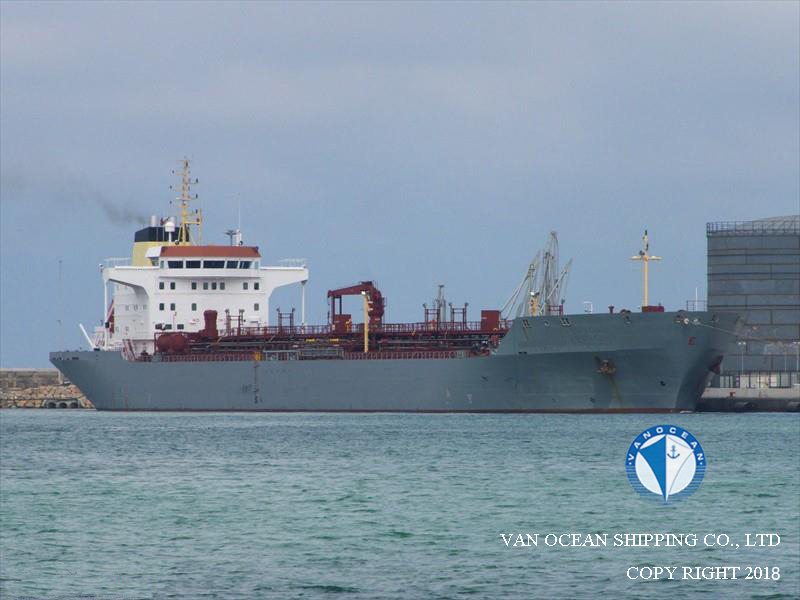

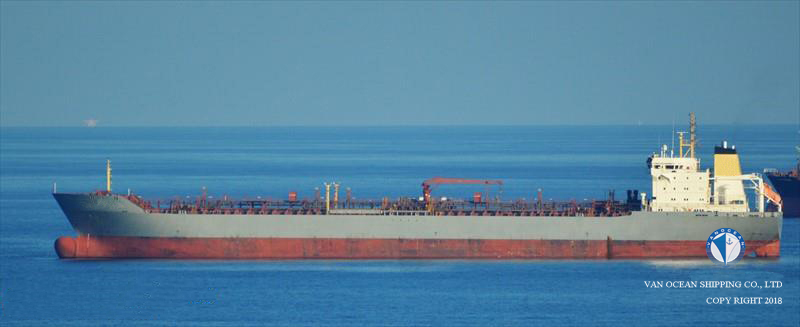

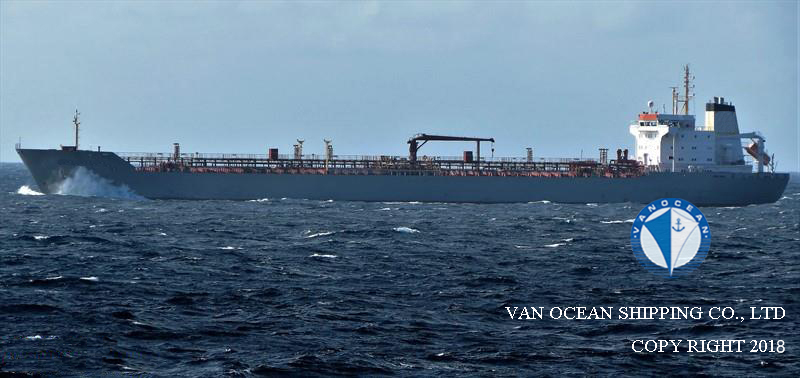

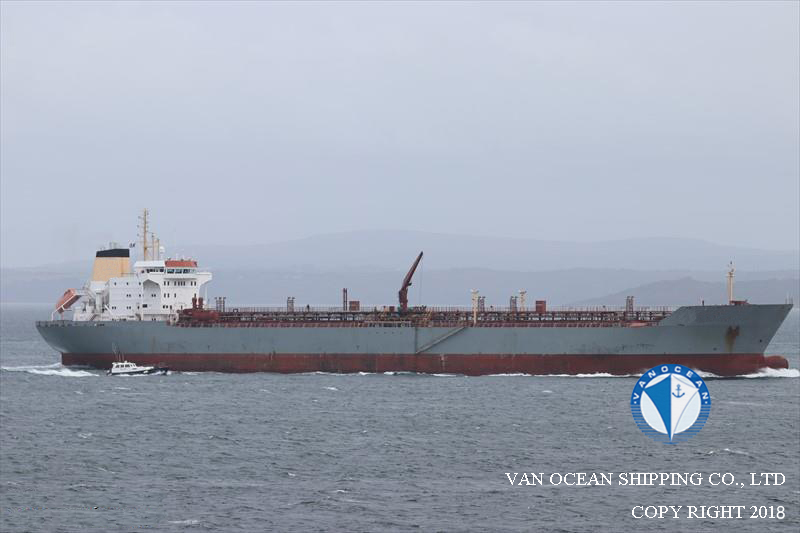

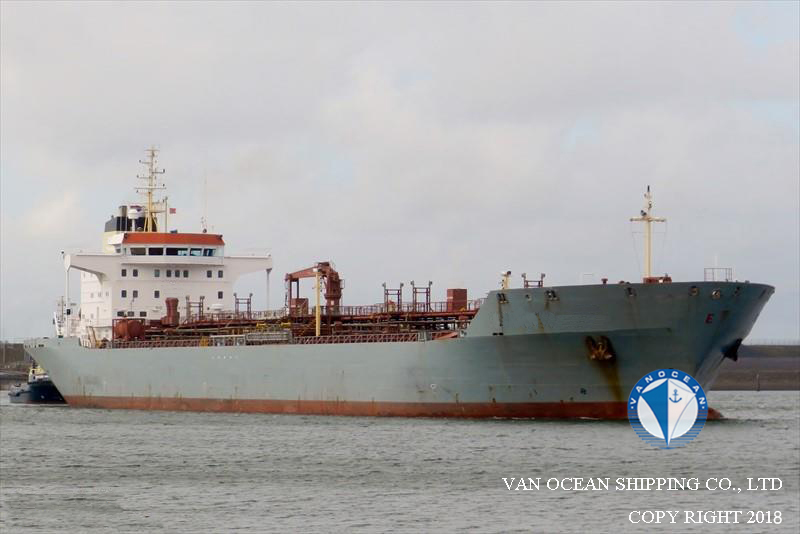

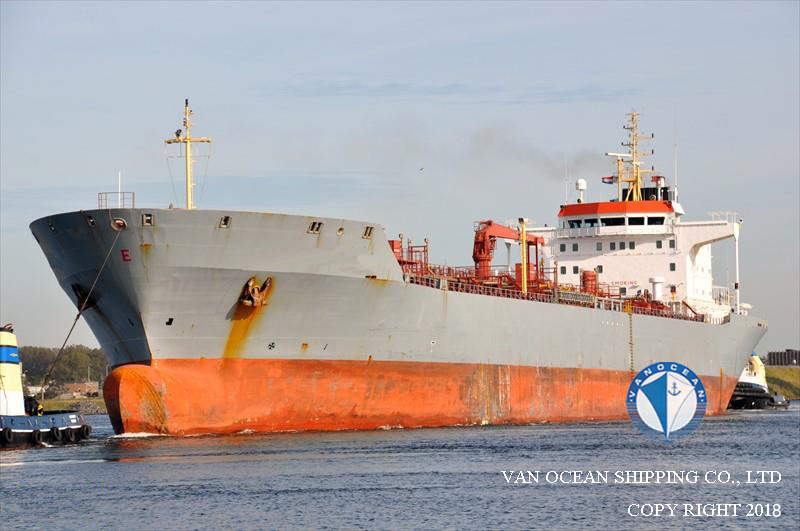

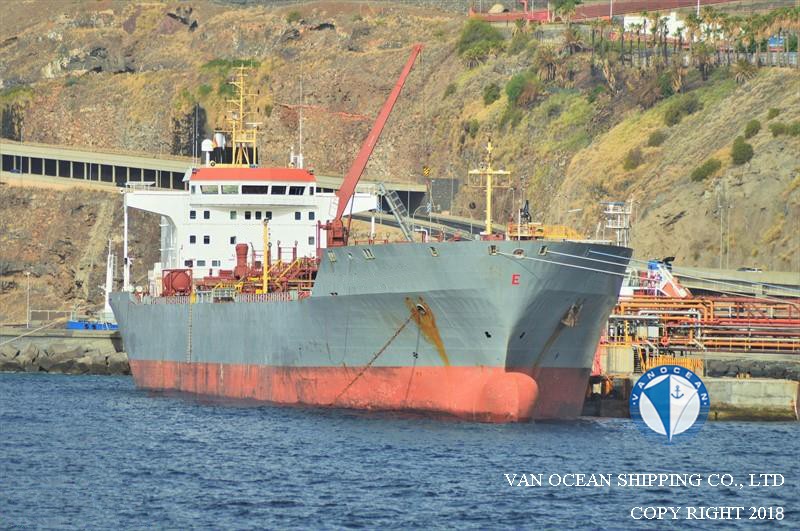

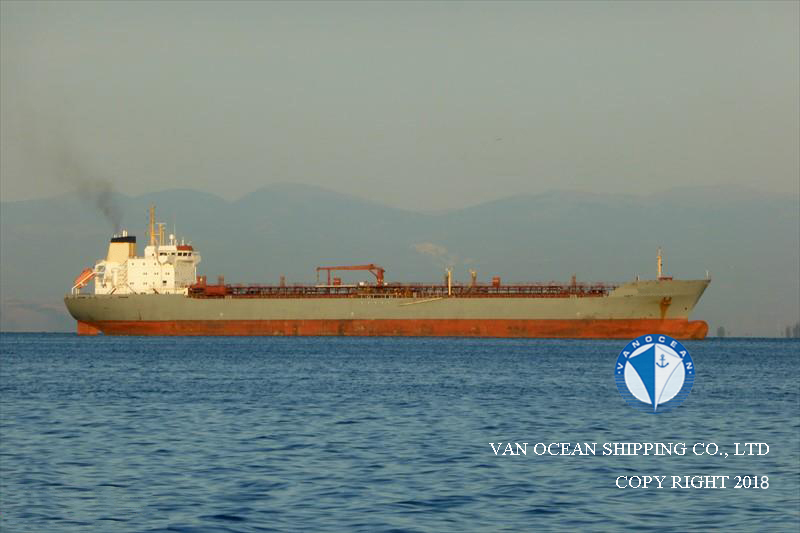

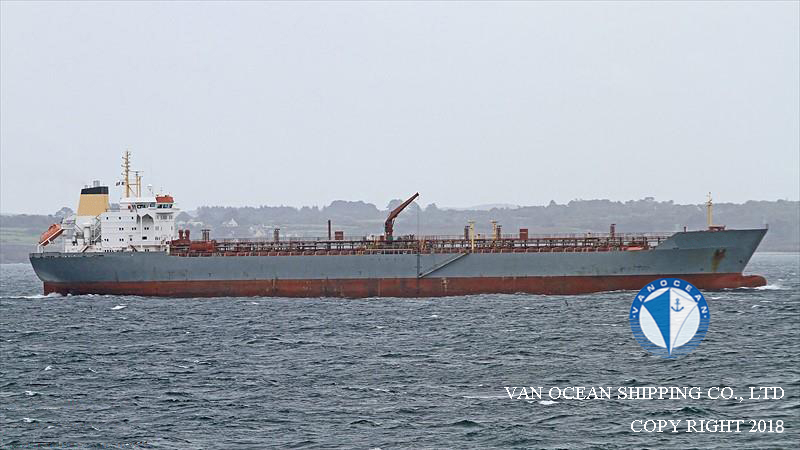

VESSEL NAME
TNK309
TYPE
OIL/CHEMICAL TANKER
HULL TYPE
DOUBLE HULL
FLAG
GIBRALTAR
PORT OF REGISTRY
-
BUILT YEAR
2002
BUILT PLACE
GERMANY
CLASSIFICATION
GL
CLASS NOTATION
+00A5 E2 COLL - 3， ESP CHEMICAL TANKER TYP 3，SUITABLE FOR CARRIAGE OF VARIOUS OIL PRODUCTS, MC E2 AUT INERT ICECLASS E2(=1B)
SS
2017-12
DD
2017-12
LOA (M)
184.90
LBP (M)
176.88
BEAM (M)
28.00
DEPTH (M)
16.80
SUMMER DRAFT (M)
11.00
WINTER DRAFT (M)
-
TROPICAL DRAFT (M)
-
GT (MT)
22345.00
PANAMA GT (MT)
-
SUEZ GT (MT)
-
NT (MT)
-
PANAMA NT (MT)
-
SUEZ NT (MT)
-
SUMMER DWT (MT)
34578.00
WINTER DWT (MT)
-
TROPICAL DWT (MT)
-
DISPLACEMENT (MT)
-
LDT (MT)
-
GEAR(S)
1 x 10MT
M/E(S)
MAN 6L58/64 11342BHP @ 428RPM
M/E POWER (KW)
8464
A/E(S)
-
GENERATOR(S)
-
SHAFT GENERATOR(S)
-
PROPELLER(S)
-
SPEED /CONSUMPTIONS
12/15 KTS ON 26 / 35 MT IFO380
FUEL TYPE
IFO380
BUNKER CAPACITY (CBM)
-
TANKS CAPACITY (CBM)
-
COMPARTMENT(S)
-
NUMBER OF CARGO HOLDS
10
CARGO CAPACITY98% (CBFT)
1490719
CARGO CAPACITY98% (CBM)
42230
COATING/MATERIAL OF HOLD(S)
EPOXY-PHENOLIC
HEATING SYSTEM
HEAT EXCHANGER
SACRIFICIAL ANODE
-
IGS
YES
PUMP(S)
10 x 500 CBM/H
2 x 200 CBM/H
2 x 750 CBM/H
ONE PUMP FOR SINGLE HOLD OR NOT
YES
SIDE THRUSTER(S)
BOWTHRUSTER: 1064KW
INSURANCE
-
CREW
-
ACCOMMODATION
-
INSPECTION
-
DELIVERY
-
PRICE
USD 12.5 MILLION
REMARK(S)
SBT
VAPOUR RETURN LINE
CENTRELINE BULKHEADS
-
-
-
-
-
-
-
-
-
-
