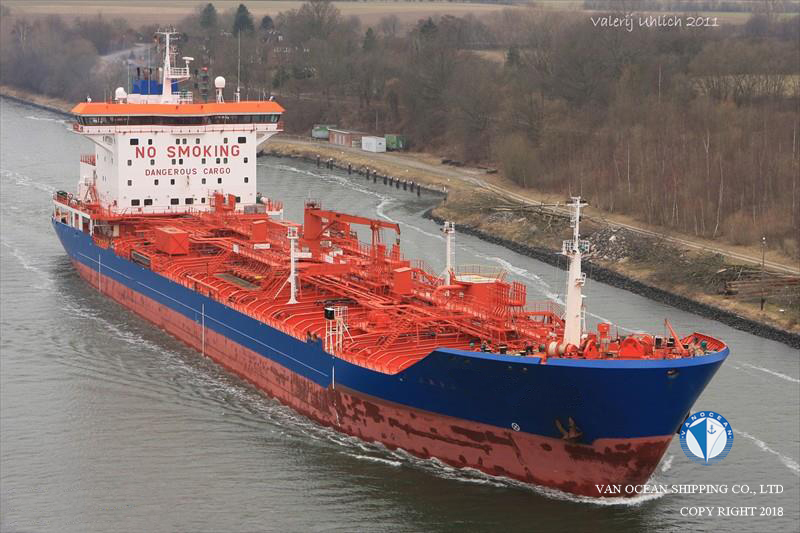

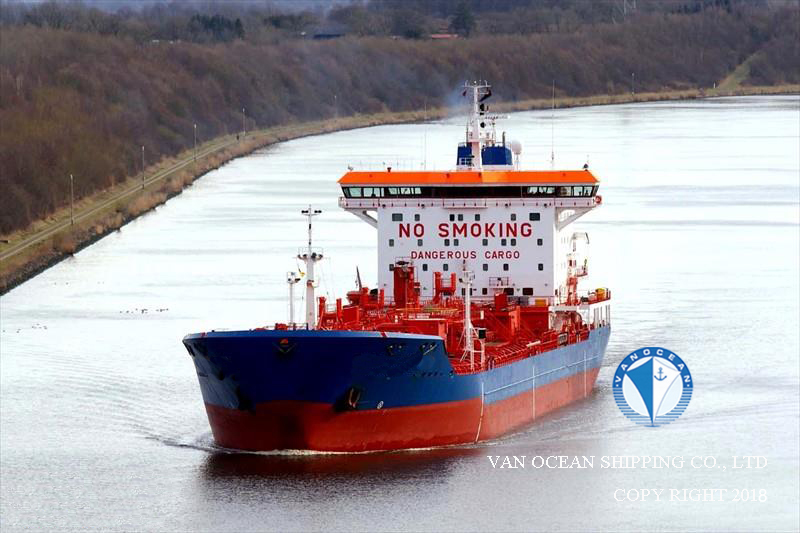

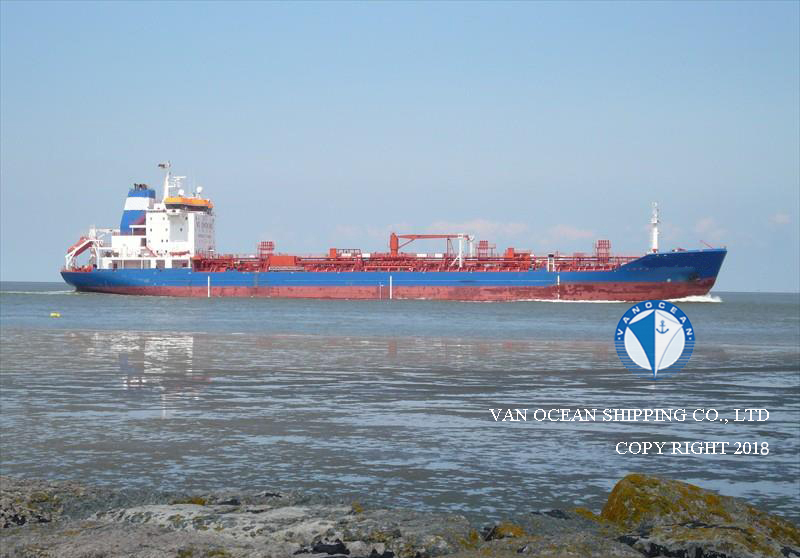

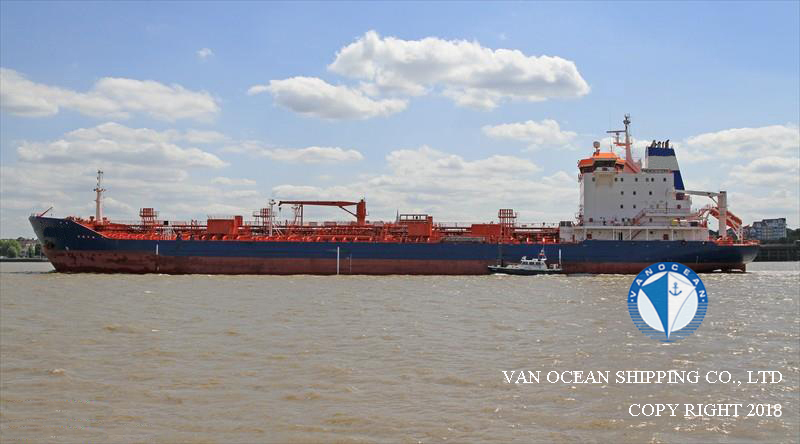

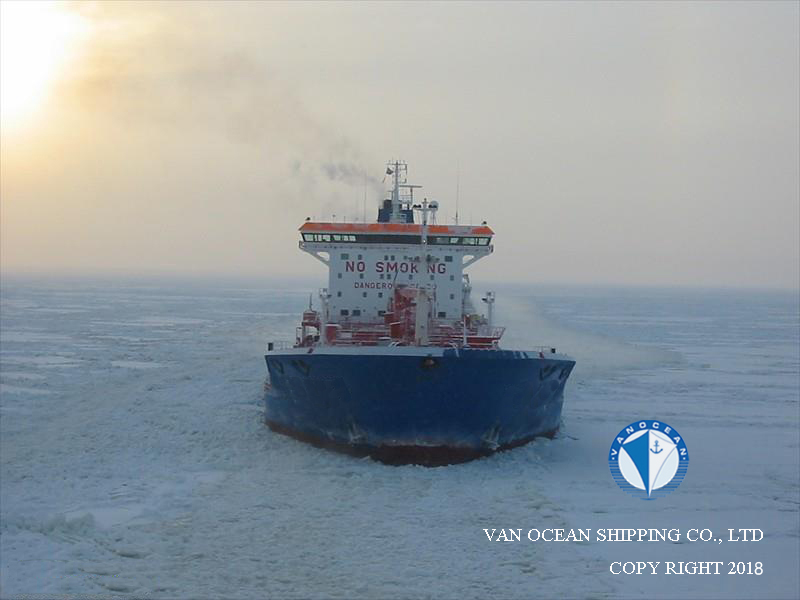

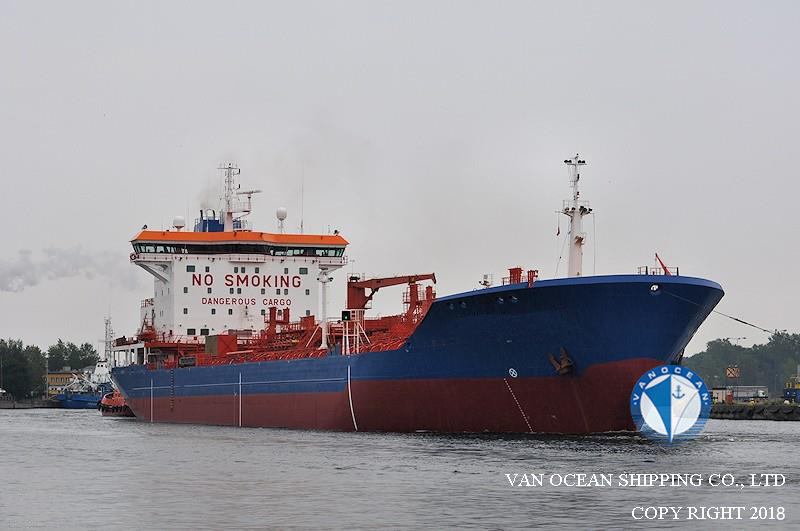

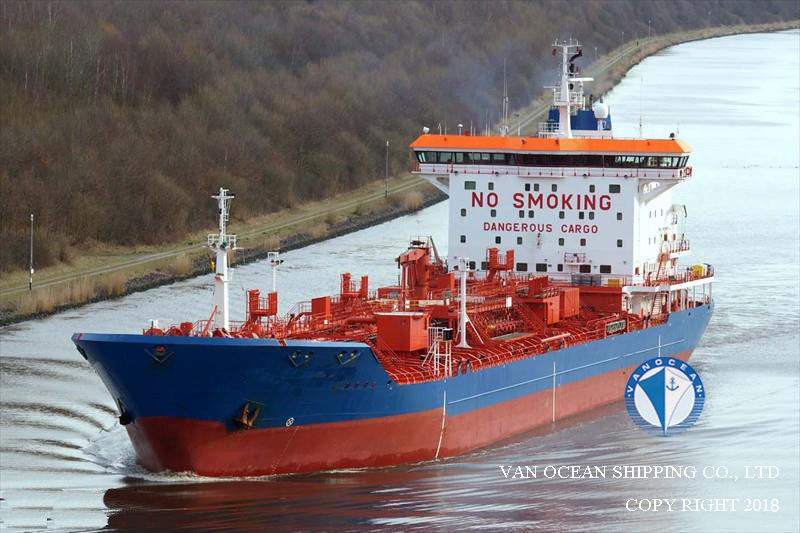

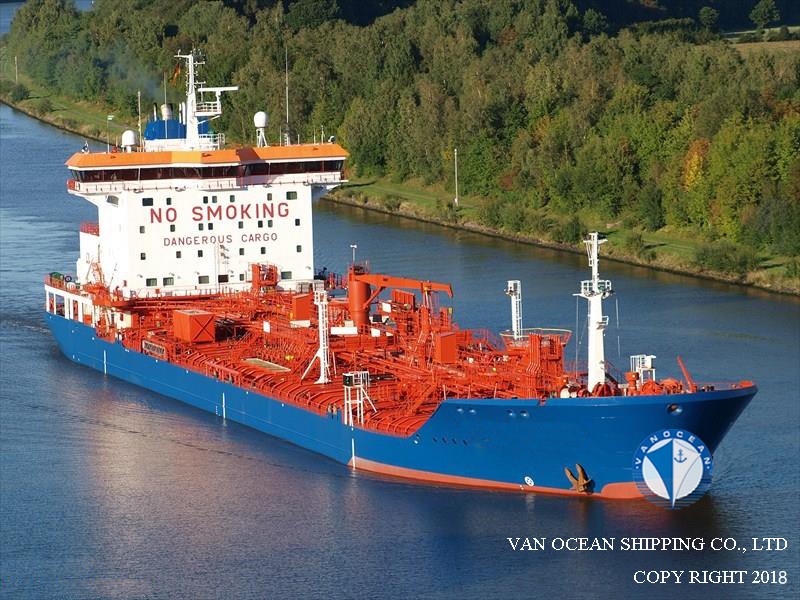

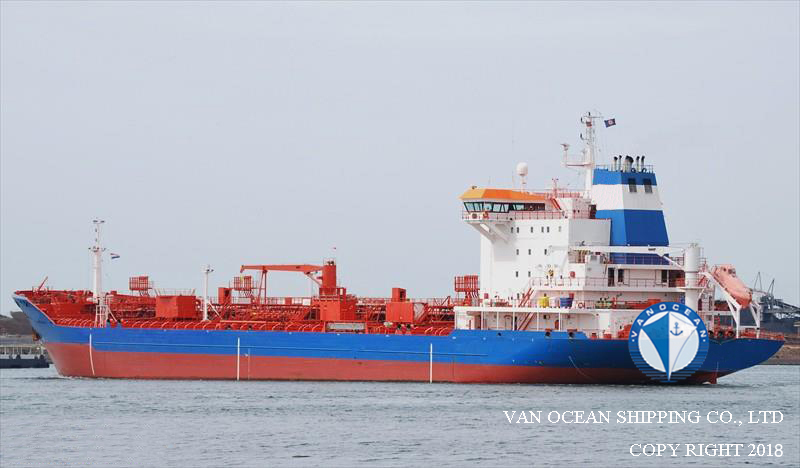

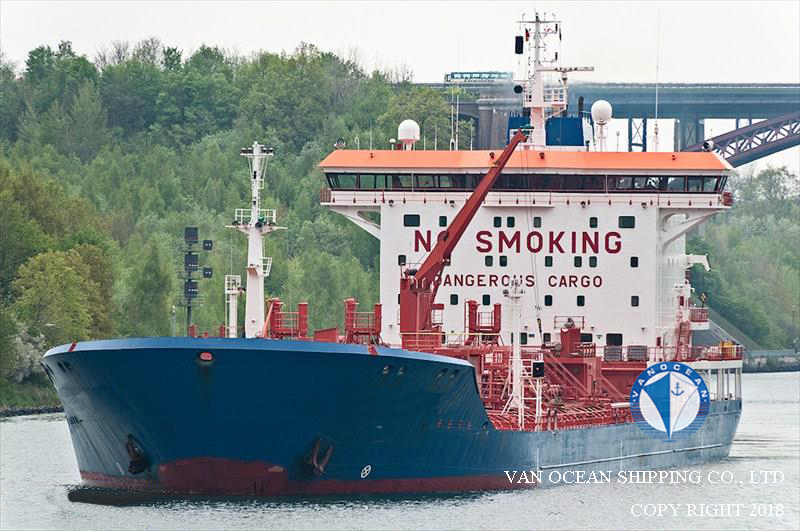

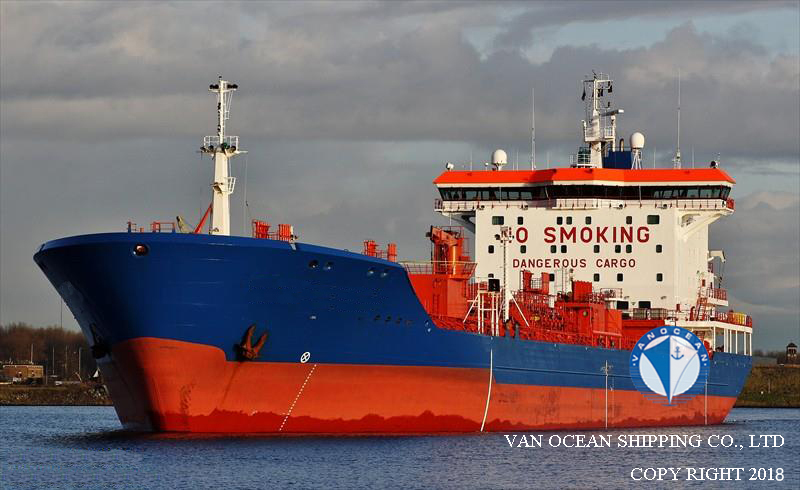

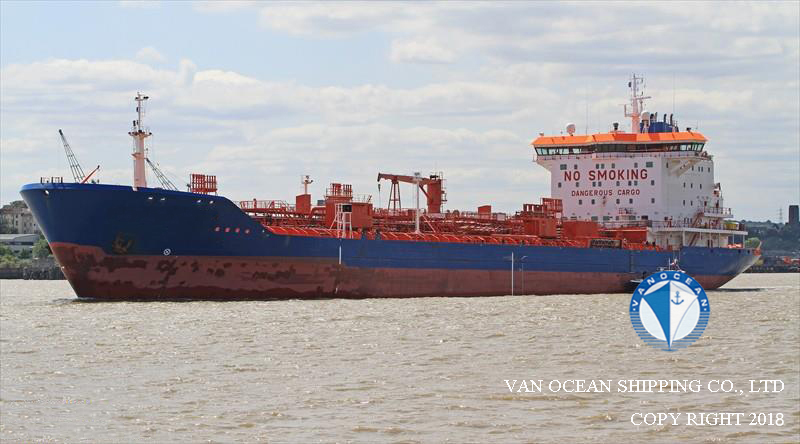

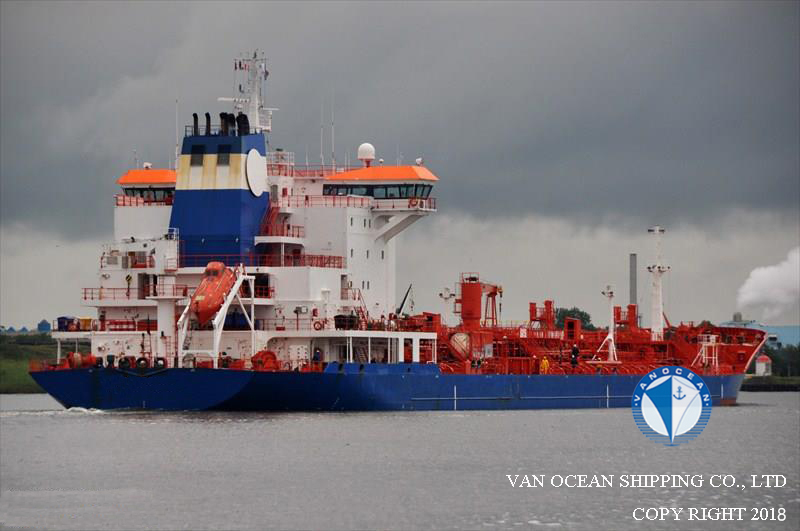

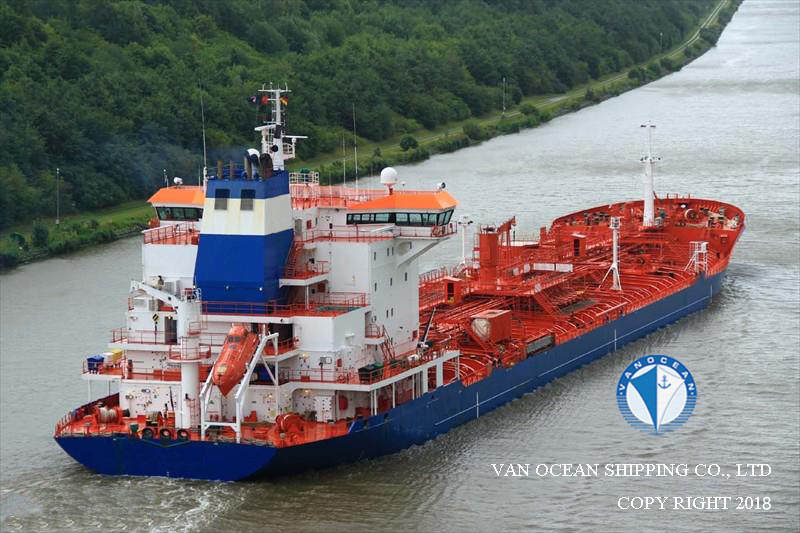

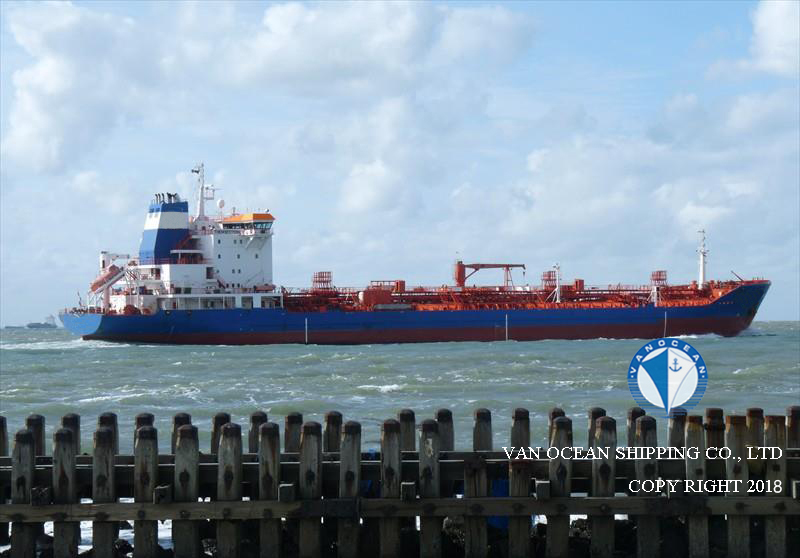

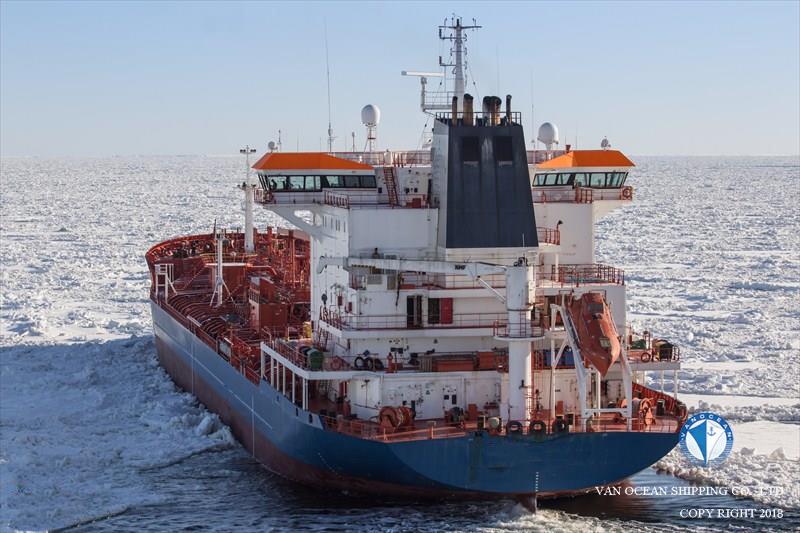

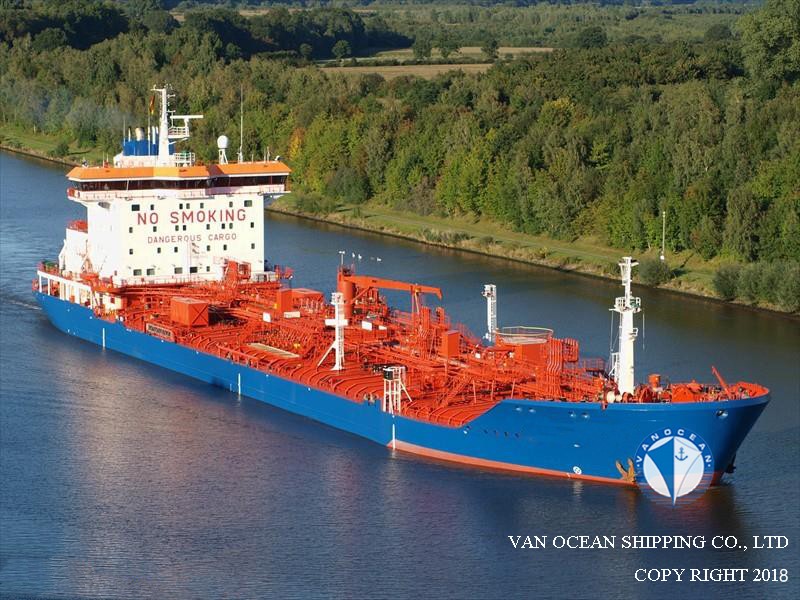

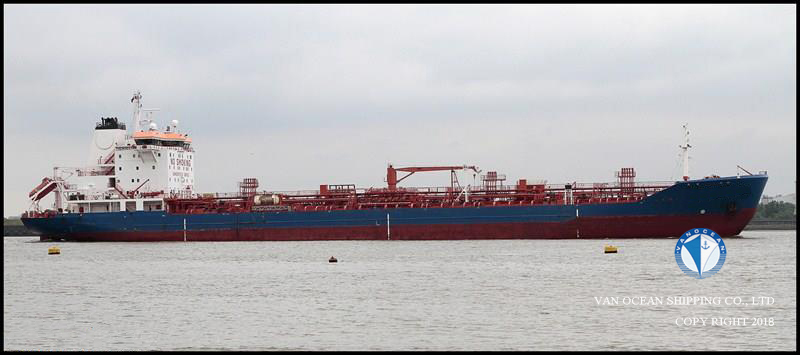

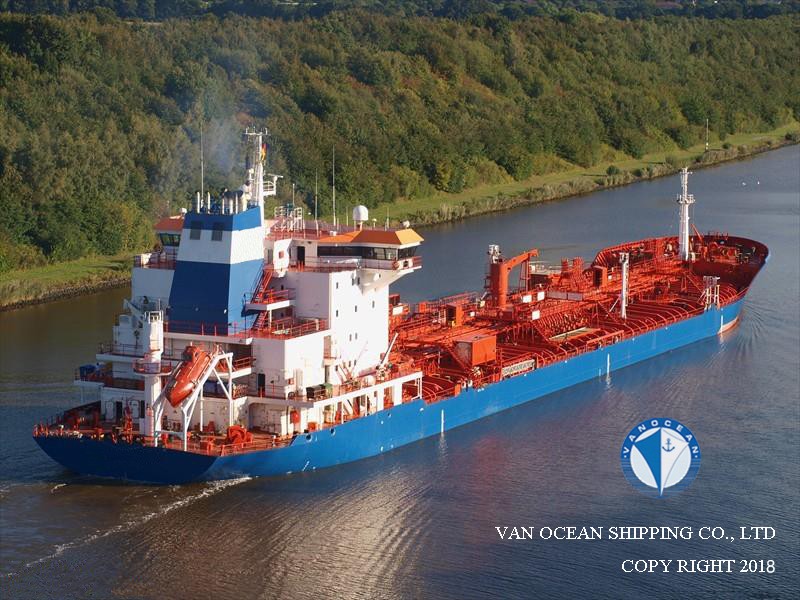

VESSEL NAME
TNK307
TYPE
OIL/CHEMICAL TANKER
HULL TYPE
DOUBLE HULL
FLAG
PORTUGAL
PORT OF REGISTRY
MADEIRA
BUILT YEAR
2000
BUILT PLACE
POLAND
CLASSIFICATION
ABS
CLASS NOTATION
A1, Chemical Carrier, Oil Carrier, ESP, AMS, ACCU,BWE, CRC(I), Ice Class IA 7440 kW, RRDA
SS
2025-06
DD
2026-08
LOA (M)
162
LBP (M)
155
BEAM (M)
27
DEPTH (M)
12
SUMMER DRAFT (M)
8.8
WINTER DRAFT (M)
-
TROPICAL DRAFT (M)
-
GT (MT)
14400
PANAMA GT (MT)
-
SUEZ GT (MT)
-
NT (MT)
6937
PANAMA NT (MT)
-
SUEZ NT (MT)
-
SUMMER DWT (MT)
21823
WINTER DWT (MT)
-
TROPICAL DWT (MT)
-
DISPLACEMENT (MT)
28710
LDT (MT)
-
GEAR(S)
CRANE 1 X 10 T
M/E(S)
MAN-B&W 6S46MC-C 7860 KW AT 129 RPM
M/E POWER (KW)
7860
A/E(S)
-
GENERATOR(S)
3 x MAN B&W 830 KW
SHAFT GENERATOR(S)
1 x 900 KW
PROPELLER(S)
CPP
SPEED /CONSUMPTIONS
LADEN: 12.5KTS / 23MT 380
FUEL TYPE
IFO380
BUNKER CAPACITY (CBM)
1236.7
TANKS CAPACITY (CBM)
SLOP: 686
COMPARTMENT(S)
8
NUMBER OF CARGO HOLDS
14
CARGO CAPACITY98% (CBFT)
890372
CARGO CAPACITY98% (CBM)
25223
COATING/MATERIAL OF HOLD(S)
EPOXY:60%, ZINC:40%
HEATING SYSTEM
STAINLESS HEATING COILS
SACRIFICIAL ANODE
-
IGS
YES
PUMP(S)
FRAMO 6 x 550 CBM/HR, 8 x 350 CBM/HR
ONE PUMP FOR SINGLE HOLD OR NOT
YES
SIDE THRUSTER(S)
BOW THRUSTER: 1 x 750KW
INSURANCE
-
CREW
-
ACCOMMODATION
-
INSPECTION
-
DELIVERY
-
PRICE
BUYERS OFFER
REMARK(S)
SBT:9542
38 x FIXED TYPE + 2 x PORTABLE TANK CLEANING
