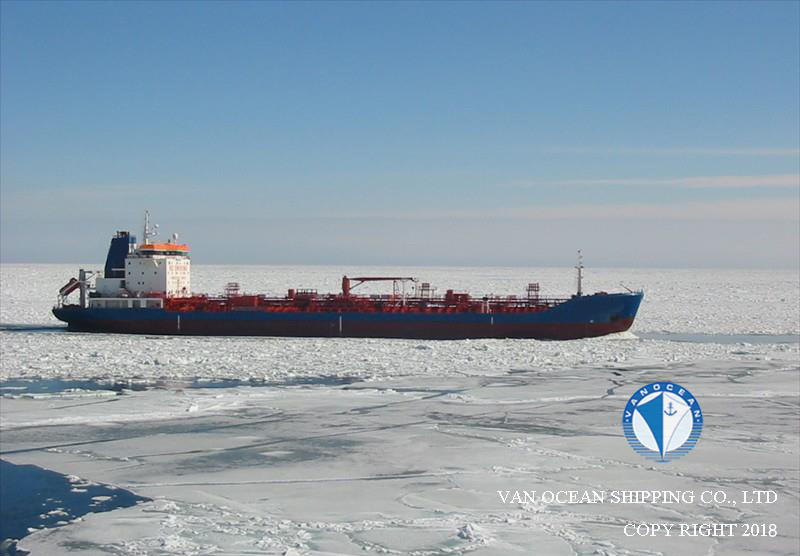

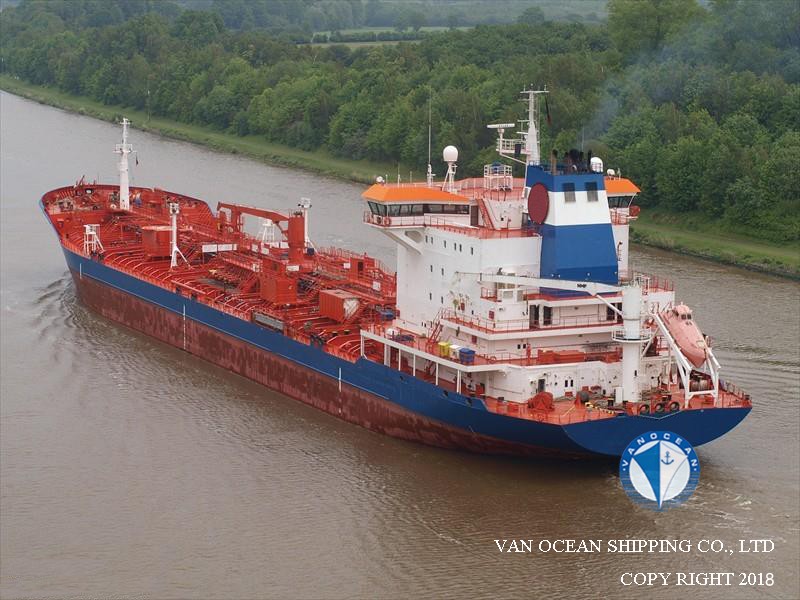

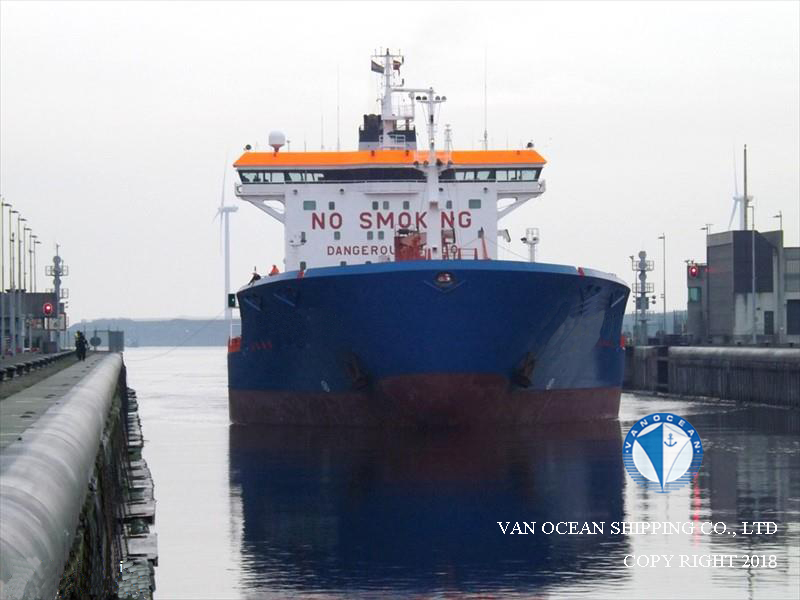

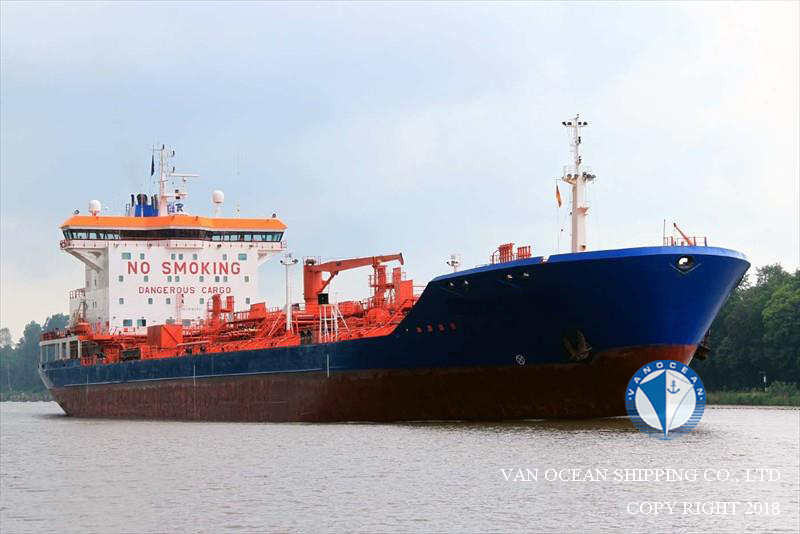

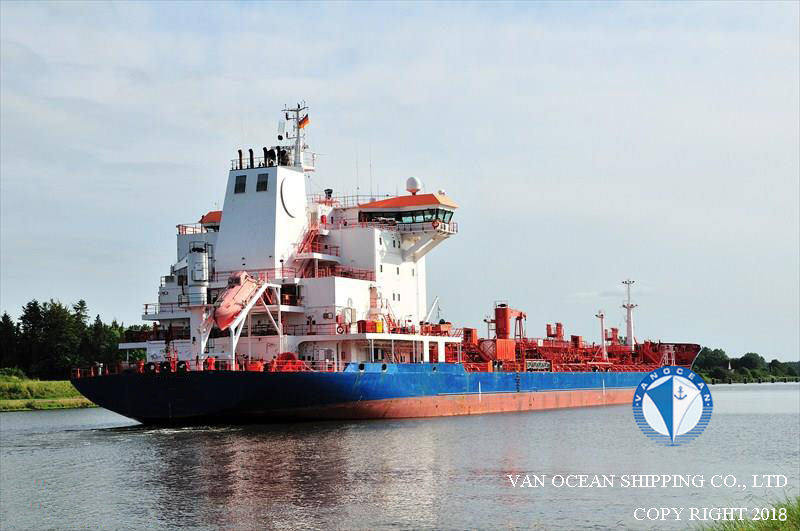

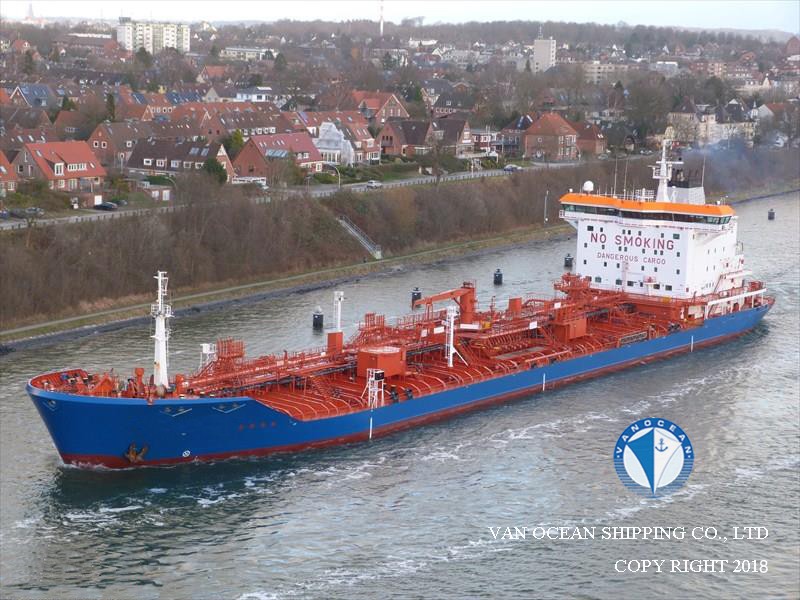

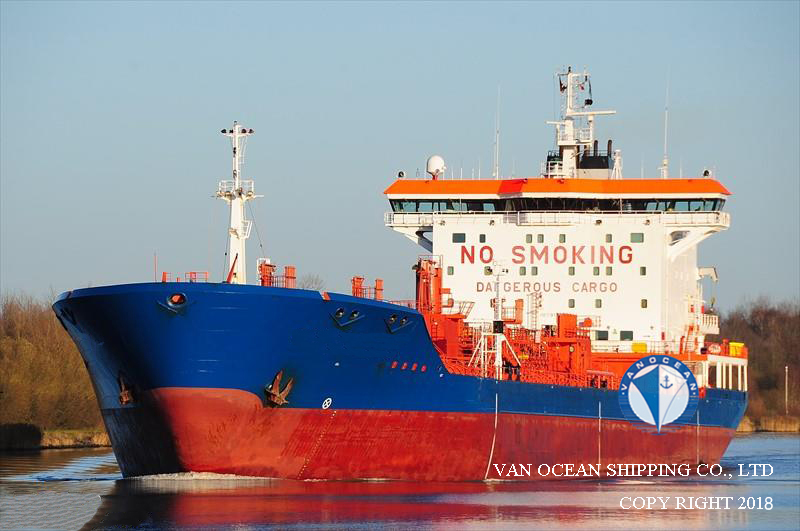

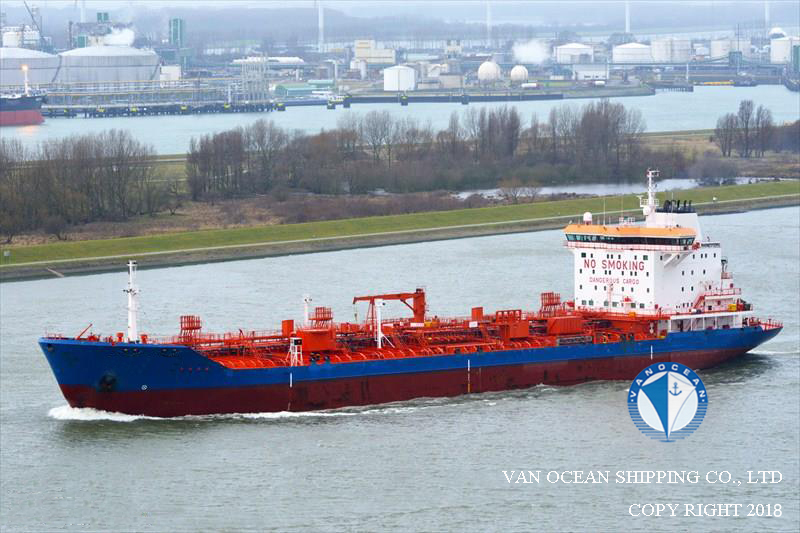

VESSEL NAME
TNK306
TYPE
OIL/CHEMICAL TANKER
HULL TYPE
DOUBLE HULL
FLAG
PORTUGAL
BUILT YEAR
2000
BUILT PLACE
POLAND
CLASSIFICATION
GL
CLASS NOTATION
+100A5 E3 WITH FREEBOARD 3.214MM COLL-3 ESP BWM-S BWM-F T4D21 CHEMICAL TANKER TYPE-2 OIL TANKER MACHINERY; +MC E3 AUT INERT
LOA (M)
162.16
LBP (M)
155.87
BEAM (M)
27.00
DEPTH (M)
12.00
SUMMER DRAFT (M)
8.80
WINTER DRAFT (M)
8.80
TROPICAL DRAFT (M)
8.80
GT (MT)
14400.00
SUEZ GT (MT)
42320.00
NT (MT)
6937.00
PANAMA NT (MT)
12078.00
SUEZ NT (MT)
34579.21
SUMMER DWT (MT)
21823.00
WINTER DWT (MT)
21823.00
TROPICAL DWT (MT)
21823.00
DISPLACEMENT (MT)
28710.00
GEAR(S)
CRANES: 2 x10 MT
OUTREACH: 5 M
M/E(S)
MAN-B&W / 6S46MC-C 10556BHP @ 129RPM
M/E POWER (KW)
7878
GENERATOR(S)
3 x 664KW
SHAFT GENERATOR(S)
1 x 720KW
PROPELLER(S)
CPP
SPEED /CONSUMPTIONS
12.5KTS / 23MT 380
FUEL TYPE
IFO380
BUNKER CAPACITY (CBM)
1249
TANKS CAPACITY (CBM)
MDO: 158
SLOP: 823.2
COMPARTMENT(S)
8
NUMBER OF CARGO HOLDS
14
CARGO CAPACITY98% (CBFT)
872721.9
CARGO CAPACITY98% (CBM)
24723
COATING/MATERIAL OF HOLD(S)
EPOXY:60%, ZINC:40%
HEATING SYSTEM
STAINLESS STEEL COILS
IGS
YES
PUMP(S)
CARGO PUMPS:
14 x 900 CBM/HR
ONE PUMP FOR SINGLE HOLD OR NOT
YES
SIDE THRUSTER(S)
BOW THRUSTER: 1000BHP
INSURANCE
USD 1 BILLION
PRICE
USD 8.5 MILLION
REMARK(S)
SBT:9555CBM
